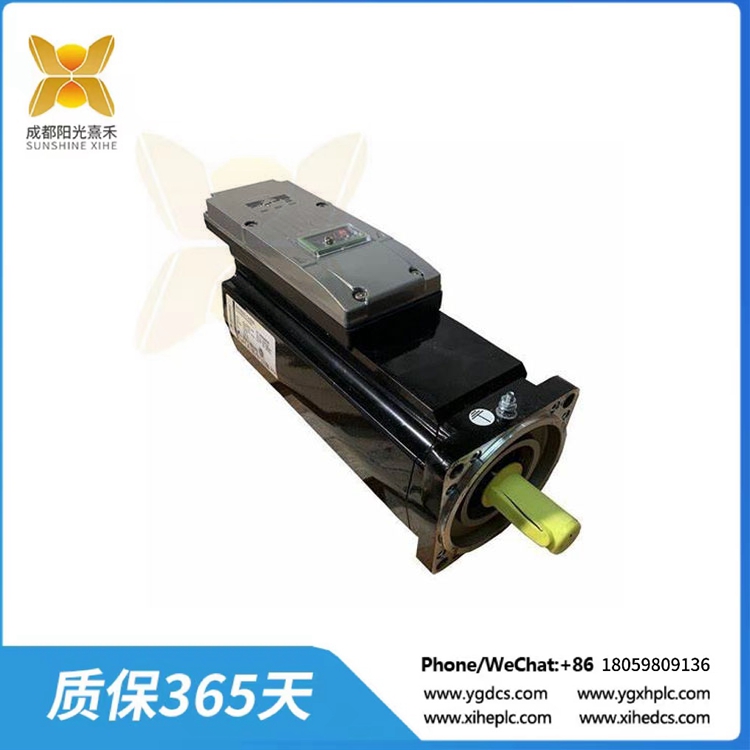

VIA1003C11A0000 伺服电机

描述

VIA1003C11A0000 伺服电机

制造商:ELAU -施耐德电气

类型:伺服电机

模型:ISH100/30058/0/1/00/0/00/00/00

艺术。没有:VIA1003C11A0000

输入1

Max。电压:680v DC

Max。电流(Imax): 3.60 A

输入2

Max。电压:24v DC

Max。电流(Imax): 0.20 A

类型额定值:封闭式1型额定值

正常转速:3000转每分钟(rpm)

Max。扭矩:28.30 Nm

公称扭矩:5.80 Nm

法兰尺寸:100mm

绝缘等级:F级

防护等级:IP50 (65)

重量:8.00公斤

VIA1003C11A0000

VIA1003C11A0000 伺服电机

Manufacturer: ELAU – SCHNEIDER ELECTRIC

Type: SERVO MOTOR

Model: ISH100/30058/0/1/00/0/00/00/00

Art. No: VIA1003C11A0000

Input 1

Max. Voltage : 680 V DC

Max. Current (Imax): 3.60 A

Input 2

Max. Voltage : 24 V DC

Max. Current (Imax): 0.20 A

Type Rating: Enclosed Type 1 Rating

Normal Speed: 3000 Revolution Per Minute (rpm)

Max. Torque: 28.30 Nm

Nominal Torque: 5.80 Nm

Flange Size: 100 mm

Insulation Class: F

Protection Class: IP50 (65)

Weight: 8.00 kg
