VDP40 控制/显示单元

描述

VDP40 控制/显示单元

产品描述
工业地板上的机器和人之间的交互对于工业应用的顺利运行至关重要。多年来，博世力士乐设计和制造了可靠、有效和耐用的人机界面。力士乐VDP系列操作终端经久耐用，可承受恶劣的工业环境和苛刻的工业应用。博世的VDP显示器屏幕尺寸从12英寸到22英寸不等，可以安装在需要空间间距质量的环境中。力士乐VDP系列显示器可提供一系列缩放尺寸，并允许通过电容触摸屏或键盘或两者进行精确操作。

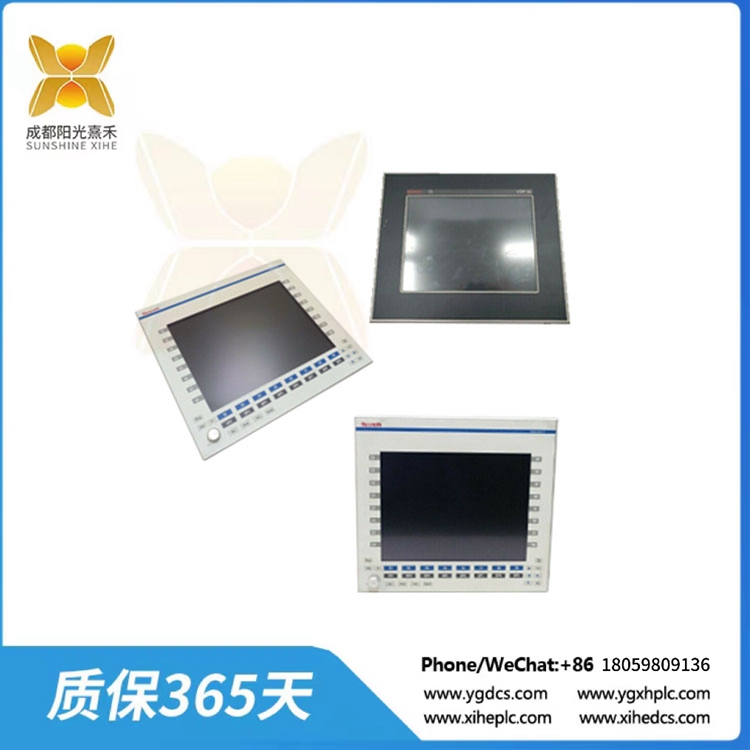

博世力士乐VDP40是indr网管VDP40系列中的一款操作终端。终端有一个15英寸的触摸屏，有16个机器功能键。当与带有CDI接口的控制柜PC机配合使用时，VDP40.3DFN-D1-NN-MX构成基于PC机的操作终端。为方便连接，CDI接口为RJ45母头，用于控制柜PC机与VDP40.3DFN-D1-NN-MX之间的数据传输。通过使用现成的RJ45连接器，控制柜PC和操作员终端之间的连接不需要昂贵的连接设备。

为了进一步降低连接成本，CDI接口包括屏幕接口(XVID)和数据接口(XSER)。当环境温度为5℃~ 45℃，无冷凝相对湿度为5% ~ 85%时，VDP40可达到最佳性能。博世力士乐indrcontrol VDP 40显示器设计为使用24伏直流外部电源进行操作。具有IP 20的整体入口保护，该终端适合在无液体的环境中运行。

VDP40

VDP40 控制/显示单元

Product Description
The interaction between a machine and a person on the industrial floor is vital to the smooth running of industrial applications. Over the years, Bosch Rexroth has designed and manufactured human machine interfaces that are reliable, effective, and durable. Rexroth’s VDP series of operator terminals are durable and designed to withstand harsh industrial environments and tough industrial applications. With a screen size ranging from 12 inches and 22 inches, Bosch’s VDP displays can be mounted in environments where space-spacing qualities are needed. Rexroth VDP series displays are available in a range of scaled sizes and allow precise operation via a capacitive touchscreen or a keyboard or both.

The Bosch Rexroth VDP40 is an operator terminal in the IndraControl VDP 40 series. The terminal has a 15-inch touchscreen display with 16 machine function keys. When used with a control cabinet PC equipped with a CDI interface, the VDP40.3DFN-D1-NN-MX forms a PC-based operator terminal. To facilitate connections, the CDI interface has an RJ45 female connector and is used to facilitate data transfer between a control cabinet PC and the VDP40.3DFN-D1-NN-MX. By using the readily available RJ45 connector, the connection between the control cabinet PC and the operator terminal eliminates the need for expensive connection devices.

To further minimize connection costs, the CDI interface includes the screen interface (XVID) and the data interface (XSER). The VDP40 reaches optimal performance when operated in environments with a surrounding temperature of between 5 degrees Celsius and 45 degrees Celsius and a non-condensing relative humidity of between 5 percent and 85 percent. The Bosch Rexroth IndraControl VDP 40 display is designed to be operated with an external power source supplying 24 Volts DC. With an overall ingress protection of IP 20, the terminal is suited to be operated in environments free from liquids.
