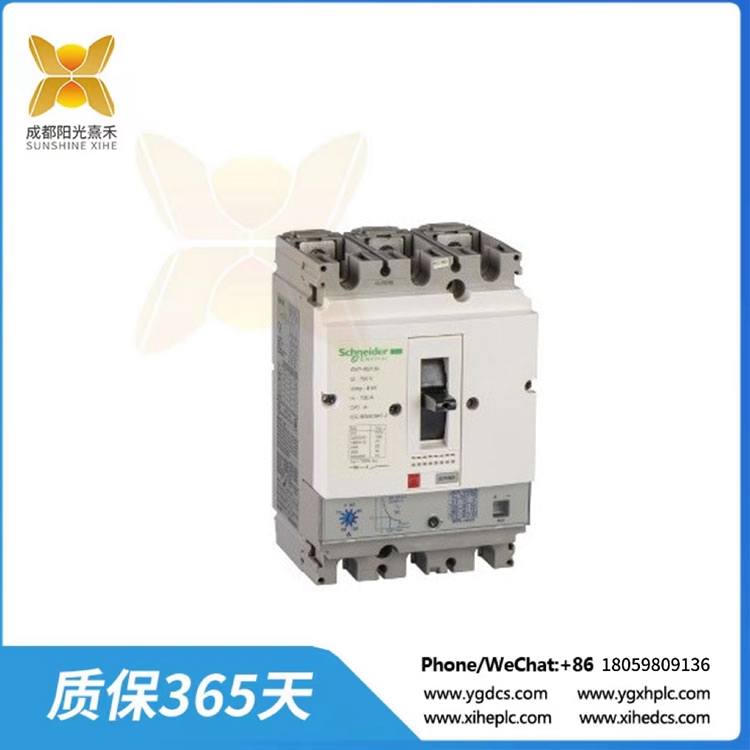

GV7-RS150 TeSys GV电机断路器3极(3P)

描述

GV7-RS150 TeSys GV电机断路器3极(3P)

TeSys GV电机断路器3极(3P)， 150A/690V，用于保护三相电机55-75kW@400V。它提供热磁保护，分断能力Icu 70kA@400V，通过拨动开关进行启停控制，连接带耳的杆或电缆(电缆与附加连接器直接连接)。热保护可调的拨号设置电流Ir在90-150A范围内，磁保护在13 Ir。保证失相保护。它使内部位置可用于额外的辅助接触块(OF, SD)和电压脱扣单元(MN, MX)。多个标准认证(IEC, UL, CSA, Marine)。

产品尺寸
身高:161毫米
宽度:105毫米
深度:111毫米
净重:2.02 kg

GV7-RS150

GV7-RS150 TeSys GV电机断路器3极(3P)

TeSys GV motor circuit breaker 3 poles (3P), 150A/690V, for protection of 3-phase motors 55-75kW@400V. It provides thermal magnetic protection, breaking capacity Icu 70kA@400V, start-stop control by toggle, connection for bars or cables with lugs (direct connection of cables with additional connectors). Thermal protection adjustable by dial with a setting current Ir in range 90-150A, magnetic protection at 13 Ir. Phase loss protection is ensured. It makes internal locations available for additional auxiliary contact blocks (OF, SD), and voltage trip units (MN, MX). Multi standards certified (IEC, UL, CSA, Marine).

产品尺寸
height：161 mm
Width：105 mm
Depth：111 mm
Net weight：2.02 kg
