95IRS2-1 洞察火焰扫描仪

描述

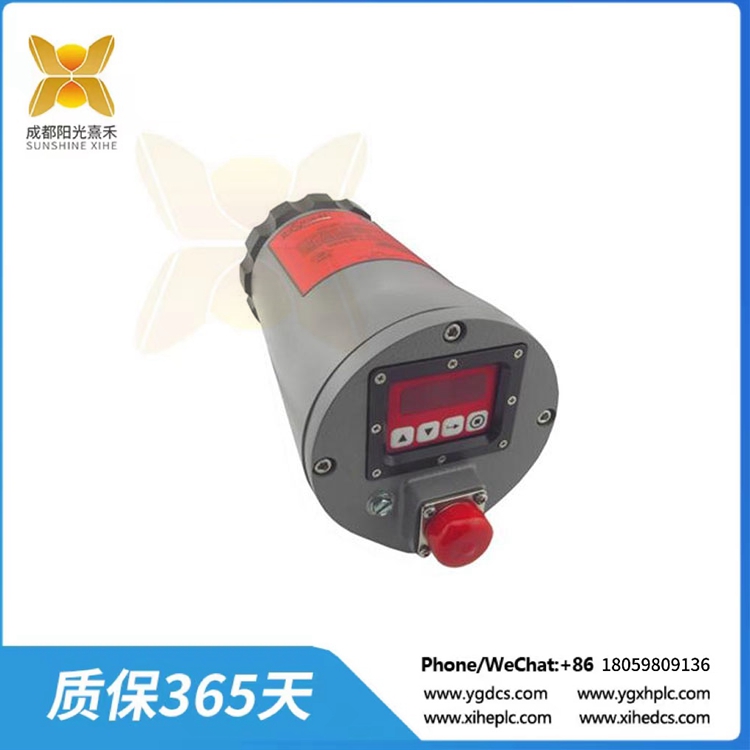

95IRS2-1 洞察火焰扫描仪

洞察火焰扫描仪95IR_95UV_95DS
Fireye InSight®型95IR, 95UV和95DS火焰扫描仪是基于微处理器的火焰扫描仪，利用固态红外(IR)，紫外线(UV)或双(IR和UV)传感器。

Fireye InSight 95型火焰扫描仪包含一个内部火焰继电器，具有可调的开/关阈值，从而消除了对远程火焰放大器的需要。所有Fireye inSight扫描仪型号都由24 Vdc供电，有12针快速断开或10英尺电缆(“CG”型号)，并包含电子自检(不需要机械快门)。扫描仪包含一个8个字符的字母数字LED显示屏和一个四个按键键盘，使用户能够查看操作参数和选择设定值。

95IRS2-1

95IRS2-1 洞察火焰扫描仪

InSight Flame Scanners 95IR_95UV_95DS
The Fireye InSight® Type 95IR, 95UV, and 95DS flame scanners are microprocessor-based flame scanners utilizing solid-state infrared (IR), ultraviolet (UV) or dual (IR and UV) sensors.

The Fireye InSight Type 95 flame scanners incorporate an internal flame relay with adjustable ON/OFF thresholds, thereby eliminating the need for a remote flame amplifier. All Fireye inSight scanner models are powered by 24 Vdc, have either a twelve-pin electrical quick disconnect or 10 ft. cable (“CG” models), and contain electronic self-checking (no mechanical shutter required). The scanners contain an eight-character alpha-numeric LED display and a four push-button keypad to enable the user to view operating parameters and select setpoints.
