1756-TBS6H 接线端子

描述

1756-TBS6H 接线端子

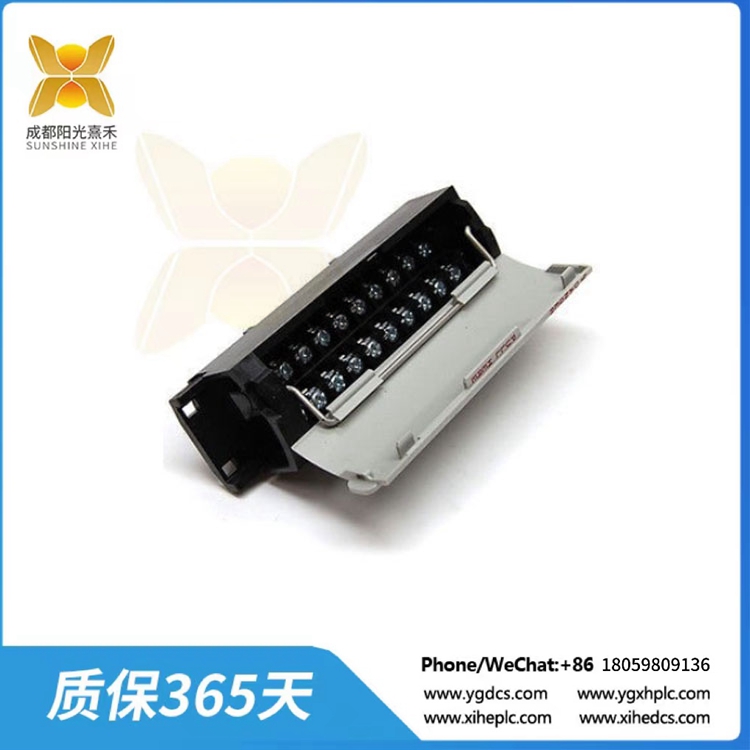

Allen-Bradley 1756- tbs6h是一个用于1756个I/O模块的可移动终端块(RTB)。它是一个I/O模块附件，必须单独订购。它为互连1756 I/O模块和工业工厂布线提供了灵活性。它很容易插入I/O模块的前部。

该1756-TBS6H可移动端子块是一个36针弹簧夹与标准外壳(接线臂深度< 2.5 ã€-mmã€- ^2)。它的尺寸为5.51 x 4.41 x 5.71英寸。它重0.3磅。对于布线，使用0.33 – 2.1 ã€-mmã€- ^2 (22 – 14 AWG)实心或绞合铜线，额定90°C(194°F)或更高，规格为1.2毫米(3/64英寸)最大绝缘。在任何一个端子上，不要使用多个导体。

每个ControlLogix I/O模块安装在任何ControlLogix机箱中，并需要一个可移动的终端块(RTB)来连接所有现场侧接线。每个I/O模块都有许多应用，从高速数字处理到过程控制。在ControlLogix架构中，使用生产者-消费者技术在相同或不同机箱中的多个控制器之间共享输入和输出状态。1756-TBS6H RTB适用于清洁干燥的工业环境，工作温度为0-60°C，工作冲击为30g。

1756-TBS6H

1756-TBS6H 接线端子

The Allen-Bradley 1756-TBS6H is a Removable Terminal Block (RTB) for 1756 I/O modules. It is an I/O module accessory and must be ordered separately. It provides flexibility in interconnecting 1756 I/O modules and industrial plant wiring. It is easily plugged into the front section of the I/O module.

The 1756-TBS6H removable terminal block is a 36-pin spring-clamp with standard housing (wiring arm depth < 2.5 〖mm〗^2). It has dimensions of 5.51 x 4.41 x 5.71 in. and it weighs 0.3 pounds. For wiring, use 0.33 – 2.1 〖mm〗^2 (22 – 14 AWG) solid or stranded copper wire, rated at 90 °C (194 °F) or greater with a gauge of 1.2 mm (3/64 in.) maximum insulation. On any single terminal, do not use multiple conductors.

Each ControlLogix I/O module mounts in any ControlLogix chassis and requires a removable terminal block (RTB) to connect all the field-side wiring. Each I/O module has many applications ranging from high-speed digital processing to process control. In ControlLogix architecture, input and output status is shared among multiple controllers in the same or different chassis using producer-consumer technology. The 1756-TBS6H RTB is intended for use in a clean and dry industrial environment with a 0-60 °C operating temperature and a 30g operating shock.
