描述

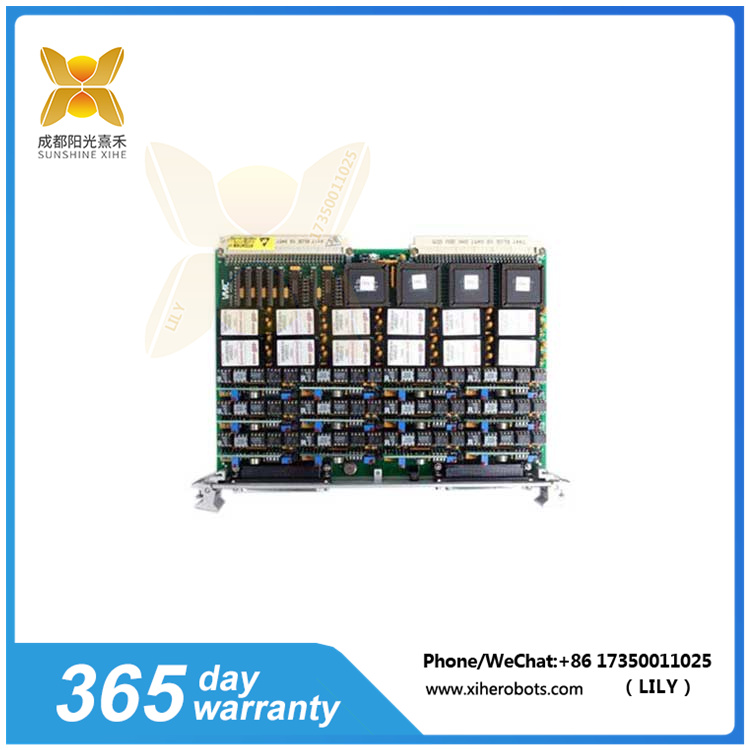

产品细节说明:VMIVME-4150 GE 隔离式12位模拟输出板
- 模拟输出通道:
- 提供12个隔离的模拟输出通道,每个通道都与其他通道和VME总线电气隔离。
- 隔离电压高达1,000 Vpk,确保通道间和通道至总线的电气隔离。
- 分辨率:
- 12位分辨率,提供高精度的模拟信号输出。
- 输出范围:
- 双极性电压输出范围可选择为2.5V、5V或10V。
- 单极性电压输出范围可选择为0至2.5V、0至5V或0至10V。
- 电流输出可选为4至20mA、0至20mA或5至25mA。
- 负载能力:
- 在整个10V范围内,电压输出的负载能力为10mA。
- 输出精度:
- 电压输出精度为0.05%。
- 电流环路输出精度为0.08%。
- 配置灵活性:
- 支持4、8或12通道配置,满足不同应用需求。
- 光学数据耦合提供完全的电流隔离。
产品详情参数 :VMIVME-4150 GE 隔离式12位模拟输出板
- 静态回读数据寄存器,简化程序控制。
- 现场连接的前面板入口,便于操作和维护。
- 电压输出的程控连接/断开操作,有助于系统试验
VMIVME-4150 GE 应用领域:
VMIVME-4150隔离式12位模拟输出板广泛应用于工业自动化、过程控制、监测和测量等领域,特别是在需要高精度模拟信号输出和电气隔离的场合。
Product details: VMIVME-4150 GE isolated 12 bit analog output board
Analog output channel:
Provide 12 isolated analog output channels, each electrically isolated from other channels and the VME bus.
The isolation voltage can reach up to 1000 Vpk, ensuring electrical isolation between channels and between channels and the bus.
resolving power:
12 bit resolution, providing high-precision analog signal output.
Output range:
The bipolar voltage output range can be selected as 2.5V, 5V, or 10V.
The output range of unipolar voltage can be selected as 0 to 2.5V, 0 to 5V, or 0 to 10V.
The current output can be selected as 4 to 20mA, 0 to 20mA, or 5 to 25mA.
Load capacity:
The load capacity of the voltage output is 10mA throughout the entire 10V range.
Output accuracy:
The voltage output accuracy is 0.05%.
The output accuracy of the current loop is 0.08%.
Configuration flexibility:
Supports 4, 8, or 12 channel configurations to meet different application requirements.
Optical data coupling provides complete current isolation.
Product details and parameters: VMIVME-4150 GE isolated 12 bit analog output board
Static read back data registers simplify program control.
The front panel entrance connected on-site is convenient for operation and maintenance.
The programmable connection/disconnection operation of voltage output is helpful for system testing
VMIVME-4150 GE application areas:
The VMIVME-4150 isolated 12 bit analog output board is widely used in industrial automation, process control, monitoring, and measurement fields, especially in situations that require high-precision analog signal output and electrical isolation.
