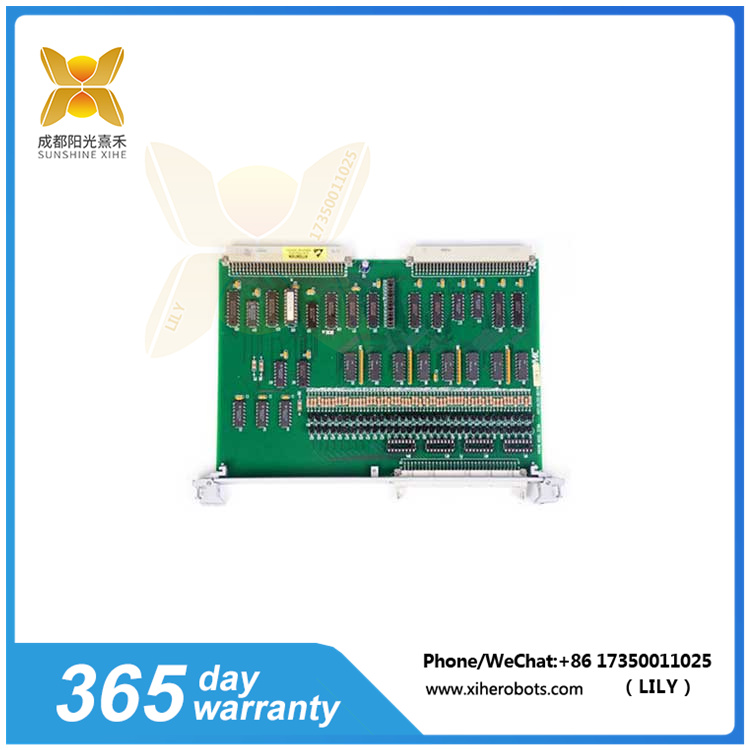

VMIVME-2170A GE 32位光耦合数字输出板 成都阳光熹禾

  • 品牌:GE(通用电气)
  • 型号:VMIVME-2170A
  • 类型:32位光耦合数字输出板
分类:
  • 购买咨询热线/Phone:18859254943
  • 邮箱/Email:sales@ygdcs.com
  • 地址:成都高新区天益街北巷52号附14号2层

描述

产品细节说明:VMIVME-2170A GE 32位光耦合数字输出板

  1. 光耦合数字输出
    • 配备32个光学隔离的数字输出通道,通过光耦合器实现高隔离度,防止电气噪声和地回路干扰。
    • 支持源输出或灌电流输出功能,提供低电流选项,输出电流范围可从2.5 mA至300 mA。
  2. VME总线兼容性
    • 采用双Eurocard外形尺寸PC板,与VME总线完全兼容,提供必要的地址解码和数据传输控制逻辑。
    • 可接受8位和16位数据传输,支持监控数据和非特权数据两种类型的数据传输。
  3. 隔离与保护
    • 高隔离电位,持续隔离电压高达1,000 V,脉冲隔离电压可达6,000 V,提供出色的电气隔离性能。
    • 通道间持续电位最大为500 V,确保各通道之间的独立性。
  4. 灵活性与配置
    • 可现场配置的上拉电阻器,允许用户根据实际需求调整输出特性。
    • 板载DIP开关提供14位板地址选择,支持灵活的地址配置。
    • 提供非特权或监管短I/O传输选项,可通过跳线选择。

VMIVME-2170A

产品详情参数 :VMIVME-2170A GE 32位光耦合数字输出板

  • 尺寸:双高欧卡,高度9.2英寸(233.4毫米),深度6.3英寸(160毫米),厚度0.8英寸(20.3毫米)。
  • 工作温度范围:0至+55°C,存储温度范围:-20至+85°C。
  • 湿度:工作湿度范围为20%至80%,无冷凝。

VMIVME-2170A GE  应用领域:

VMIVME-2170A 32位光耦合数字输出板特别适用于需要高隔离度、抗噪能力和灵活配置的工业自动化、过程控制、数据采集和传输等领域。它可以在高电气噪声环境中稳定工作,消除系统接地回路,确保数字信号的准确传输。

Product Details: VMIVME-2170A GE 32-bit Optical Coupled Digital Output Board
Optical coupling digital output:
Equipped with 32 optically isolated digital output channels, high isolation is achieved through optocouplers to prevent electrical noise and ground circuit interference.
Supports source output or sink current output function, provides low current option, and the output current range can be from 2.5 mA to 300 mA.
VME bus compatibility:
Adopting a dual Eurocard external size PC board, fully compatible with VME bus, providing necessary address decoding and data transmission control logic.
Acceptable 8-bit and 16 bit data transmission, supporting two types of data transmission: monitoring data and non privileged data.
Isolation and protection:
High isolation potential, continuous isolation voltage up to 1000 V, pulse isolation voltage up to 6000 V, providing excellent electrical isolation performance.
The maximum sustained potential between channels is 500 V, ensuring independence between each channel.
Flexibility and configuration:
On site configurable pull-up resistors allow users to adjust output characteristics according to their actual needs.
The onboard DIP switch provides 14 bit board address selection and supports flexible address configuration.
Provide non privileged or regulated short I/O transfer options, which can be selected through jumpers.
Product details and parameters: VMIVME-2170A GE 32-bit optically coupled digital output board
Size: Double height Eurocard, height 9.2 inches (233.4 millimeters), depth 6.3 inches (160 millimeters), thickness 0.8 inches (20.3 millimeters).
Working temperature range: 0 to+55 ° C, storage temperature range: -20 to+85 ° C.
Humidity: The working humidity range is 20% to 80%, with no condensation.

VMIVME-2170A GE application areas:

The VMIVME-2170A 32-bit optically coupled digital output board is particularly suitable for industrial automation, process control, data acquisition, and transmission fields that require high isolation, noise resistance, and flexible configuration. It can work stably in high electrical noise environments, eliminate system grounding circuits, and ensure accurate transmission of digital signals.
