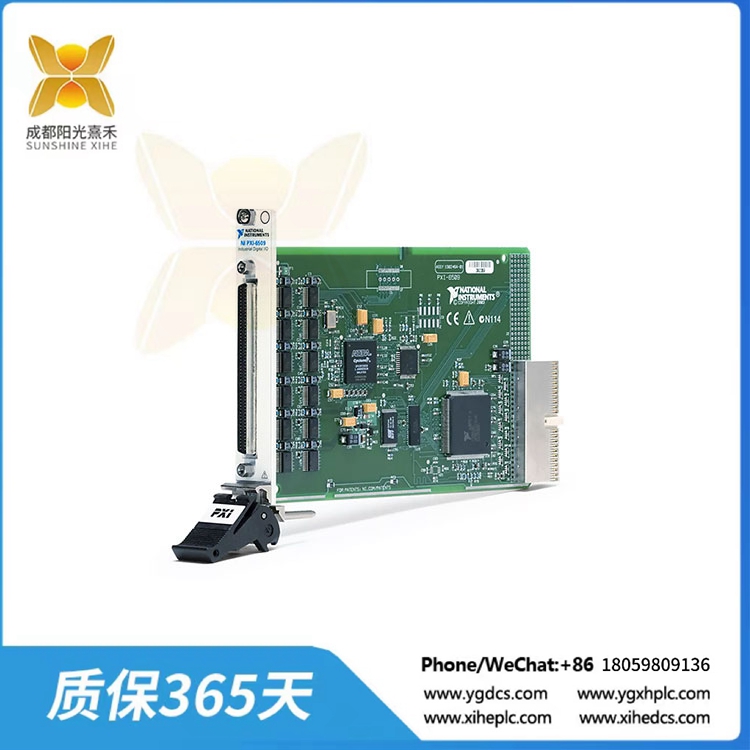

PXI-6509 96 通道、24 mA、PXI 数字 I/O 模块
美国国家仪器公司的PXI-6509(部件号:778858-01)数字I/O模块具有96条数字I/O线,单端信令,0 V至5 V输出电压范围,数字输入电压范围为-0.5 V至5.5 V,以及5 V数字I/O逻辑电平。96条DIO线中的每一条都可以用作静态数字输入(DI)或数字输出(DO)线。PXI-6509的一些数字输出应用包括:驱动外部模型和传输TTL信号。NI PXI-6509的几个数字输入应用是感应外部模型和接收TTL信号。
PXI-6509数字I/O模块配备了看门狗定时器,数字滤波,变化检测和各种其他功能。可以实现数字滤波以消除输入信息中的错误。如果将此特性与变更检测一起使用,那么数字滤波可以额外减少需要评估和处理的修改量。数字滤波是允许的,无论用户的应用程序需要多少输入行。当利用变更检测特性时,这些线路的计时间隔范围从400 ns到200 ms,重要的是要认识到大量的变更检测可能会降低系统的性能水平。因此,可以利用数字滤波来降低输入线的噪声。NI设备配备一个100针母0.050系列SCSI I/O连接器。
PXI 6509使用NI-DAQmx驱动软件运行,该驱动软件与LabVIEW, LabWindows/CVI或Measurement Studio等软件包兼容。设备硬件采用MAX配置。
NI PXI-6509数字I/O模块只能通过屏蔽电缆和附件进行操作。这些包括SCB-100连接器块,CB-50连接器块和CB-50LP连接器块。这些电缆和附件保证PXI-6509符合PXI-6509用户手册中规定的EMC标准。该器件在+3.3 VDC时的典型功耗值为375 mA,在+5 VDC时的典型功耗值为250 mA。如果需要,可以安装一个磁盘驱动器电源连接,以便在+ 5v端子上增强电源。
NI设备重6.1盎司,尺寸为6.3 x 3.9英寸。在物理维度上。推荐使用温度范围为0℃~ 55℃,存储温度范围为-20℃~ 70℃。PXI-6509的其他规格信息可以在“手册和pdf”选项卡下的用户手册和数据表中找到。
PXI-6509 96 通道、24 mA、PXI 数字 I/O 模块
The PXI-6509 (Part Number: 778858-01) Digital I/O Module by National Instruments has 96 digital I/O lines, single-ended signaling, 0 V to 5 V output voltage range, a digital input voltage range of -0.5 V to 5.5 V, and 5 V digital I/O logic levels. Each of the 96 DIO lines can be utilized as a static digital input (DI) or digital output (DO) line. A few of the digital output applications for the PXI-6509 include: driving external models and transporting TTL signals. Several of the digital input applications for the NI PXI-6509 are sensing external models and receiving TTL signals.
The PXI-6509 Digital I/O Module comes equipped with a watchdog timer, digital filtering, change detection, and various other features. Digital filtering can be implemented to eradicate errors on input information. If this feature is used with change detection, then digital filtering can additionally decrease the amount of modifications to assess and process. Digital filtering is permitted on however many input lines are required for the user’s application. The timing interval range for these lines is from 400 ns to 200 ms. when utilizing the change detection feature, it is important to recognize that a high number of change detections can decrease the system’s performance levels. Therefore, digital filtering can be utilized to reduce the noisy input lines. The NI device is equipped with a 100-pin female 0.050 series SCSI I/O connector.
The PXI 6509 is run using the NI-DAQmx driver software which is compatible with software packages like LabVIEW, LabWindows/CVI, or Measurement Studio. The device hardware is configured using MAX.
The NI PXI-6509 Digital I/O Module can only be operated with shielded cables and accessories. These include an SCB-100 connector block, CB-50 connector block, and CB-50LP connector block. These cables and accessories guarantee the PXI-6509 will comply with the EMC standards specified in the PXI-6509 user manual. The device has a power consumption value of 375 mA typical at +3.3 VDC, and 250 mA typical at +5 VDC. A disk drive power connection can be installed in order to boost the power supply on the +5 V terminal if desired.
The NI device weighs 6.1 oz, and measures 6.3 x 3.9 in. in physical dimensions. It has a recommended operating temperature range of 0 °C to 55 °C, and a storage temperature range of –20 °C to 70 °C. Additional specification information for the PXI-6509 can be found in the user manuals and datasheets under “Manuals & PDFs” tab.
