描述

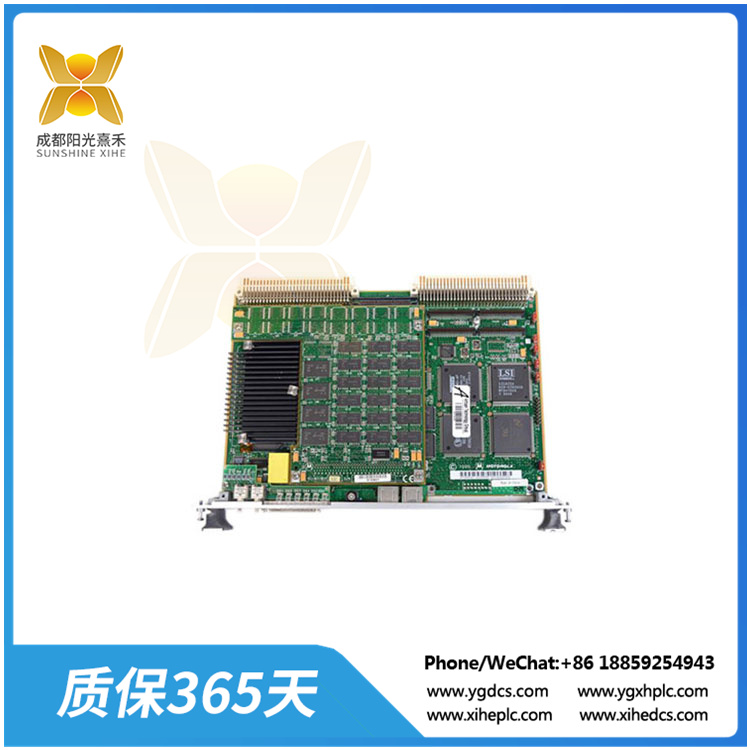

MVME2700 VME64 处理器模块,266 MHz,64 MB RAM
配置:
•VME64
•266mhz PowerPC 750处理器,1mb L2缓存
•64 MB DRAM
•5mb闪存
•64位PCI Mezzanine Connector
•扫描前面板
•前面板接口:键盘,鼠标,软盘/LED
•(1)可用的64位PMC插槽
•与MVME761过渡模块兼容
卡上的零件编号:01-W1668B 33H, 01-W1668B 33G, 01-W1713B 04F, 01-W3287F 07K, 01-W3287F 07J
子卡上的部件编号:01-W3191F 03C
特点:
powerpc750 32位微处理器
32KB/32KB L1 Cache
1MB后端L2缓存
16MB至256MB ECC DRAM
4或8MB板载闪存,1MB插入
带有自检诊断的板载调试监视器
IEEE P1386.1兼容32/64位PMC扩展插槽
以太网收发器接口与32位PCI本地总线DMA
8位或16位快速SCSI-2总线接口
并行、软盘、键盘和鼠标接口
8KB x 8 NVRAM和时钟与可更换的电池备份
摩托罗拉MVME2700系列VME / VME64处理器模块是基于摩托罗拉PowerPlus VME架构和PowerPC微处理器的VME处理器模块系列,可将VME的性能和功能推向前所未有的极限。MVME2700的灵活性提供了一个优秀的基础平台,可以快速,轻松地定制各种行业特定的应用。
MVME2700专为满足军事和航空航天,工业自动化和医疗的需求而设计,适用于各种应用。DRAM扩展夹层可以将内存升级到最大256MB的ECC DRAM,而无需额外的VME插槽。
MVME2700 VME64 处理器模块,266 MHz,64 MB RAM
Configuration:
• VME64
• 266 MHz PowerPC 750 Processor, 1 MB L2 Cache
• 64 MB DRAM
• 5 MB Flash
• 64-Bit PCI Mezzanine Connector
• Scanbe Front Panel
• Front Panel Interfaces: Keyboard, Mouse, Floppy/LED
• (1) Available 64-Bit PMC Slot
• Compatible with MVME761 Transition Module
Part Numbers on card: 01-W1668B 33H, 01-W1668B 33G, 01-W1713B 04F, 01-W3287F 07K, 01-W3287F 07J
Part Number on daughter card: 01-W3191F 03C
Features:
PowerPC 750 32-Bit Microprocessor
32KB/32KB L1 Cache
1MB Backside L2 Cache
16MB to 256MB ECC DRAM
4 or 8MB On-Board Flash, 1MB Socketed
On-Board Debug Monitor with Self-Test Diagnostics
IEEE P1386.1 Compatible 32/64-Bit PMC Expansion Slot
Ethernet Transceiver Interface with 32–Bit PCI Local Bus DMA
8 or 16-Bit Fast SCSI-2 Bus Interface
Parallel, Floppy, Keyboard and Mouse Interfaces
8KB x 8 NVRAM and Time-Of-Day Clock with Replaceable Battery Backup
The Motorola MVME2700 Series VME / VME64 Processor Modules is a family of VME processor modules based on the Motorola PowerPlus VME architecture with PowerPC microprocessors that push performance and functionality to limits unprecedented on VME. The flexibility of the MVME2700 provides an excellent base platform that can be quickly and easily customized for a variety of industry-specific applications.
Designed to meet the needs of military and aerospace, industrial automation, and medical, MVME2700 applies to a variety of applications. DRAM expansion mezzanines enable memory upgrades to the maximum 256MB of ECC DRAM without requiring additional VME slots.
