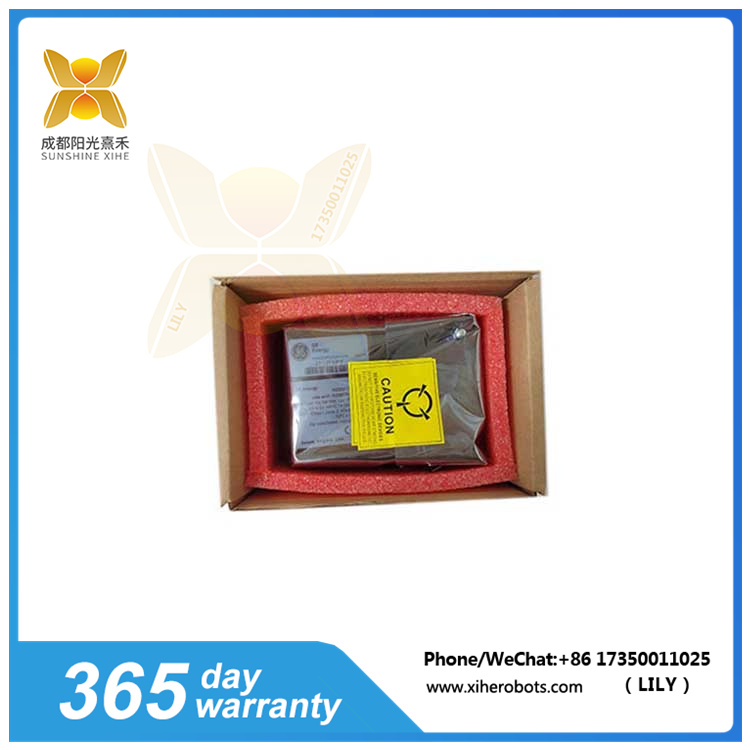

IS220PDOAH1A GE 离散输出组件 成都阳光熹禾

  1. 型号:IS220PDOAH1A
  2. 品牌:GE(通用电气)
  3. 系统:Speedtronic Mark VIe燃气轮机控制系统
  4. 类型:离散输出组件
分类:
  • 购买咨询热线/Phone:18859254943
  • 邮箱/Email:sales@ygdcs.com
  • 地址:成都高新区天益街北巷52号附14号2层

描述

产品细节说明:IS220PDOAH1A GE 离散输出组件

  • 作用:IS220PDOAH1A通过电气接口将一个或两个I/O以太网网络连接到离散输出端子板,实现离散量信号的输出控制。
  • 处理器板:该套件包括一块由所有Mark VIe分布式I/O套件共享的处理器板,以及一块专用于离散输出功能的采集板。
  • 继电器控制:该电池组最多可控制12个继电器,并接受来自接线板的反馈。有磁继电器(如TRLYH1B、C、D和F端子板)和固态继电器(如TRLYH1E板)可供选择。
  • 电源与连接:该电池组由三针电源输入和两个RJ45以太网连接器供电。输出通过直接连接到相关端子板连接器的DC-37针连接器进行。
  • 诊断功能:LED指示灯提供视觉诊断,红外端口允许本地诊断串行通信。

IS220PDOAH1A

产品详情参数 :IS220PDOAH1A GE 离散输出组件

  • 端子板类型:适用于六种不同类型的离散(继电器)输出端子板,包括TRLY和SRLY板,但不包括DIN导轨安装的DRLY板。
  • 系统配置:根据系统需求,可以有不同的配置方式,如Simplex(使用单个I/O包和一个或两个网络连接)、Dual(使用两个I/O包和一个或两个网络接口)和TMR(使用三个I/O包,每个包有一个网络连接)。
  • 环境适应性:该组件可在0至65摄氏度的温度范围内使用,即使在高额定温度下,也不需要风扇进行冷却。

IS220PDOAH1A GE  应用领域:

IS220PDOAH1A作为GE Speedtronic Mark VIe燃气轮机控制系统中的一个关键组件,在离散量信号的输出控制方面发挥着重要作用。其高可靠性、兼容性和灵活性使其成为燃气轮机控制系统中的优选产品。

Product details: IS220PDOAH1A GE discrete output component
Function: IS220PDOAH1A connects one or two I/O Ethernet networks to the discrete output terminal board through electrical interfaces, achieving output control of discrete signals.
Processor Board: This kit includes a processor board shared by all Mark VIe distributed I/O kits, as well as an acquisition board dedicated to discrete output functionality.
Relay control: This battery pack can control up to 12 relays and receive feedback from the terminal block. There are magnetic relays (such as TRLYH1B, C, D, and F terminal boards) and solid-state relays (such as TRLYH1E boards) available for selection.
Power and Connection: The battery pack is powered by a three pin power input and two RJ45 Ethernet connectors. The output is carried out through a DC-37-pin connector directly connected to the relevant terminal board connector.
Diagnostic function: LED indicator lights provide visual diagnosis, and the infrared port allows local diagnostic serial communication.
Product details parameters: IS220PDOAH1A GE discrete output component
Terminal board type: Suitable for six different types of discrete (relay) output terminal boards, including TRLY and SRLY boards, but not including DRLY boards installed on DIN rails.
System configuration: According to system requirements, there can be different configuration methods, such as Simplex (using a single I/O package and one or two network connections), Dual (using two I/O packages and one or two network interfaces), and TMR (using three I/O packages, each with one network connection).
Environmental adaptability: This component can be used within a temperature range of 0 to 65 degrees Celsius, and does not require a fan for cooling even at high rated temperatures.
IS220PDOAH1A GE application areas:

IS220PDOAH1A, as a key component of the GE Speedtronic Mark VIe gas turbine control system, plays an important role in the output control of discrete signals. Its high reliability, compatibility, and flexibility make it the preferred product in gas turbine control systems.
