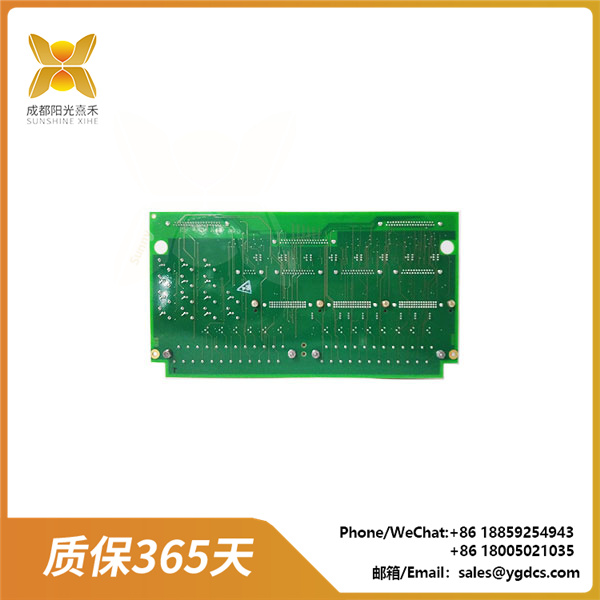

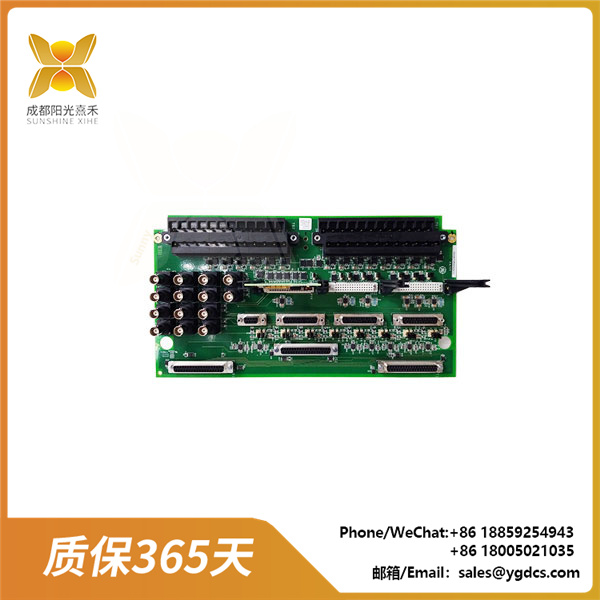

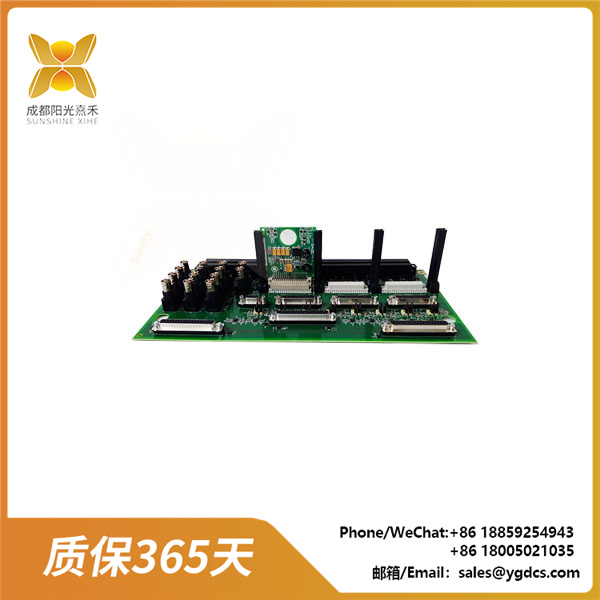

产品介绍：IS200TVBAH2ACC 振动输入终端板
GE IS200TVBAH2ACC 振动输入终端板是一款专为工业自动化和控制系统设计的高精度、高可靠性的振动监测解决方案。该终端板主要用于采集设备的振动信号，并将其转换为标准电信号，以便PLC进行处理和分析，从而实现对设备运行状态的监测和故障诊断。
主要功能与特点
高精度与可靠性：
IS200TVBAH2ACC采用优质元件制造，具有良好的抗干扰能力和稳定性，确保在恶劣工业环境中的可靠运行。
支持多种振动传感器，如IEPE加速度计，适用于不同类型的振动监测。
多通道输入：
该终端板具有4个通道，每个通道的量程为±5g，采样率最高可达10kHz，分辨率为24位。
支持16路数字输入，适用于更复杂的监测需求。
电气特性：
输入电压：24V DC
输出电压：5V DC
功耗：<5W
工作温度范围：-40°C 至 +85°C
防护等级：IP65。
安装与兼容性：
尺寸：160mm x 110mm x 40mm
材料：铝合金外壳
安装方式：DIN导轨安装。
兼容Mark VI系列控制系统，适用于燃气轮机、蒸汽轮机、压缩机等多种工业设备的振动监测。
通信接口：
提供RS485通信接口，支持与上位机或主控系统的数据交换。
支持以太网通信协议，便于远程监控和数据传输。
应用场景：
燃气轮机：监测燃烧室振动，确保安全运行。
蒸汽轮机：监测转子失衡，防止设备故障。
压缩机：评估压缩机性能，及时发现故障。
其他应用：化工生产、炼油、船舶制造、航空航天等领域。
技术参数
输入类型：模拟量
输入点数：16点（部分证据提到4点，但多数证据支持16点）。
输入信号范围：4-20mA（部分证据提到±5g，但多数证据支持4-20mA）。
输入信号阻抗：200Ω（部分证据提到500V DC隔离，但多数证据支持200Ω）。
电源电压：24V DC
功耗：<5W
尺寸：160mm x 110mm x 40mm（部分证据提到133.9英寸 x 8.5英寸 x 2.17英寸，但多数证据支持160mm x 110mm x 40mm）。
重量：250g（部分证据提到2.2磅，但多数证据支持250g）。
注意事项
部分证据中提到的参数存在矛盾，例如输入点数（4点 vs 16点）和输入信号范围（±5g vs 4-20mA）。综合多方证据，IS200TVBAH2ACC更可能支持16点输入和4-20mA信号范围。
IS200TVBAH2ACC与IS200TVBAH2A在功能和应用上存在差异，IS200TVBAH2A支持更多通道和更高的灵活性。
GE IS200TVBAH2ACC 振动输入终端板是一款高性能、多功能的振动监测解决方案，适用于各种工业自动化和控制系统，特别是在燃气轮机、蒸汽轮机和压缩机等设备的振动监测中表现出色。
Product Introduction:IS200TVBAH2ACC Vibration input terminal board
The GE IS200TVBAH2ACC Vibration Input Terminal Board is a highly accurate and reliable vibration monitoring solution designed for industrial automation and control systems. The terminal board is mainly used to collect the vibration signal of the equipment and convert it into a standard electrical signal for PLC processing and analysis, so as to realize the monitoring and fault diagnosis of the equipment operating state.
Main functions and characteristics
High accuracy and reliability:
The IS200TVBAH2ACC is manufactured from high-quality components with good anti-interference capability and stability, ensuring reliable operation in harsh industrial environments.
Supports a variety of vibration sensors, such as the IEPE accelerometer, for different types of vibration monitoring.
Multi-channel input:
The terminal board has four channels, each with a range of ±5g, a sampling rate of up to 10kHz, and a resolution of 24 bits.
Supports 16 digital inputs for more complex monitoring needs.
Electrical characteristics:
Input voltage: 24V DC
Output voltage: 5V DC
Power consumption: <5W
Operating temperature range: -40°C to +85°C
Protection class: IP65.
Installation and compatibility:
Size: 160mm x 110mm x 40mm
Material: Aluminum alloy shell
Mounting method: DIN rail mounting.
Compatible with Mark VI series control system, suitable for gas turbine, steam turbine, compressor and other industrial equipment vibration monitoring.
Communication interface:
RS485 communication interface to support data exchange with the host computer or the main control system.
Support Ethernet communication protocol, facilitate remote monitoring and data transmission.
Application scenario:
Gas turbine: Monitor combustion chamber vibration to ensure safe operation.
Steam turbine: Monitor rotor imbalance to prevent equipment failure.
Compressor: Evaluate compressor performance and detect faults in time.
Other applications: chemical production, oil refining, shipbuilding, aerospace and other fields.
Technical parameter
Input type: Analog
Input points: 16 points (some evidence mentions 4 points, but most evidence supports 16 points).
Input signal range: 4-20mA (some evidence mentions ±5g, but most evidence supports 4-20mA).
Input signal impedance: 200Ω (some evidence mentions 500V DC isolation, but most support 200Ω).
Power supply voltage: 24V DC
Power consumption: <5W
Dimensions: 160mm x 110mm x 40mm (some evidence mentions 133.9 inches x 8.5 inches x 2.17 inches, but most support 160mm x 110mm x 40mm).
Weight: 250g (some evidence mentions 2.2 LBS, but most support 250g).
Matters needing attention
Some of the parameters mentioned in the evidence are contradictory, such as the number of input points (4 points vs 16 points) and the input signal range (±5g vs 4-20mA). Based on multiple evidence, IS200TVBAH2ACC is more likely to support 16-point input and 4-20mA signal range.
IS200TVBAH2ACC and IS200TVBAH2A differ in function and application, IS200TVBAH2A supports more channels and higher flexibility.
The GE IS200TVBAH2ACC Vibration Input Terminal Board is a high-performance, versatile vibration monitoring solution for a wide range of industrial automation and control systems, particularly in the vibration monitoring of equipment such as gas turbines, steam turbines and compressors.
