IE3102 扩展盒，4通道模拟输入

Description

IE3102 扩展盒，4通道模拟输入

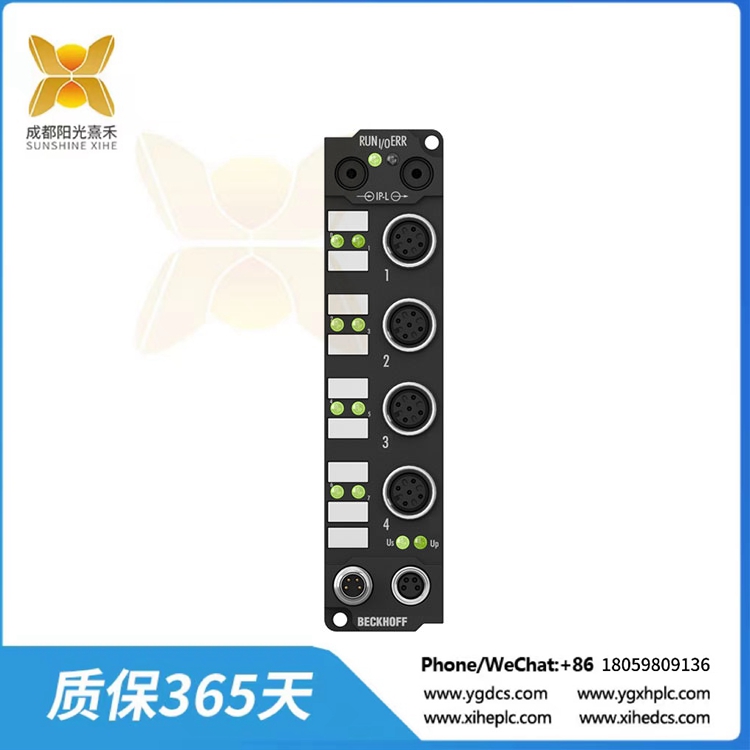

IE3102模拟输入模块处理-10到+ 10v范围内的信号。电压被数字化到16位的分辨率，并通过电隔离传输到更高级别的自动化设备。四个输入通道具有差分输入，并具有共同的内部接地电位。施加的辅助电压(可以是任何值，最高可达30 V DC)被馈送到传感器。因此，例如，从外部电压源提供具有10v DC的测量电位器是可能的。

该模块非常通用，但是默认设置的选择方式使得在大多数情况下不需要执行配置。输入滤波器和相关的转换时间可以在很宽的范围内设置;可以选择几种数据输出格式。如果需要，可以对输入进行不同的缩放。自动限位监控也可用。参数化可以通过现场总线或使用KS2000软件工具进行。

IE3102

IE3102 扩展盒，4通道模拟输入

The IE3102 analog input module handles signals in the range from -10 to +10 V. The voltage is digitized to a resolution of 16 bits and is transmitted, electrically isolated, to the higher-level automation device. The four input channels have differential inputs and possess a common, internal ground potential. The applied auxiliary voltage (which can be any value up to 30 V DC) is fed through to supply the sensor. It is thus possible, for instance, to supply a measuring potentiometer with 10 V DC from an external voltage source.

The module is quite versatile, but default settings have been selected in such a way that in most cases it is not necessary to perform configuration. The input filter and associated conversion times can be set within a wide range; several data output formats may be chosen. If required, the inputs can be scaled differently. Automatic limit monitoring is also available. Parameterization may be carried out either via the fieldbus or using the KS2000 software tool.
