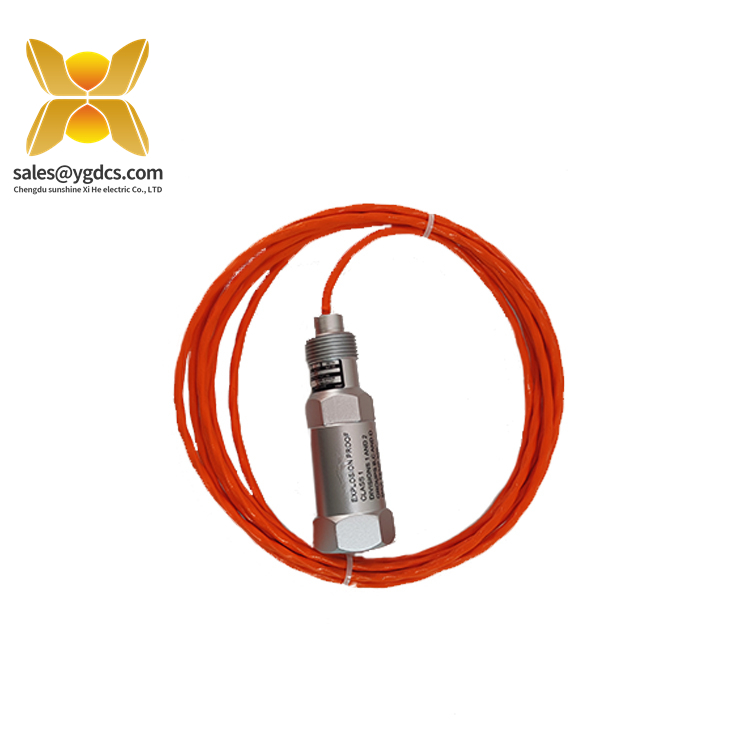

HONEYWELL LG1093AA24 261A1812P012：高灵敏度紫外线火焰传感器
品牌：Honeywell
型号：LG1093AA24 261A1812P012
产品参数：
型号：LG1093AA24 261A1812P012
产品参数：
-
传感器类型：紫外线火焰传感器
-
外壳材质：1.4571 不锈钢
-
窗口材质：熔融石英
-
安装方式：3/4 英寸内螺纹
-
工作温度范围：-40°C 至 177°C
-
耐压性：21 bar（300 psi）@ 316°C（600°F）
-
电缆特性：PTFE 材质，橙色护套，引线长度 4.9 米
-
光谱灵敏度：190-290 nm
-
启动电压：<260VDC
-
背景噪音：<5 min⁻¹
-
响应时间：<200ms
-
推荐工作电压：260-350VDC，建议 325VDC±25VDC
-
脉冲输出：275 次/秒±25 次/秒
Brand: Honeywell
Model: LG1093AA24 261A1812P012
Product Parameters:
Model: LG1093AA24 261A1812P012
Product Parameters:
-
Sensor Type: Ultraviolet Flame Sensor
-
Housing Material: 1.4571 Stainless Steel
-
Window Material: Fused Quartz
-
Mounting Interface: 3/4 inch internal NPT
-
Operating Temperature Range: -40°C to 177°C
-
Pressure Resistance: 21 bar (300 psi) @ 316°C (600°F)
-
Cable Characteristics: PTFE material, orange sheath, lead length 4.9 meters
-
Spectral Sensitivity: 190-290 nm
-
Start-up Voltage: <260VDC
-
Background Noise: <5 min⁻¹
-
Response Time: <200ms
-
Recommended Operating Voltage: 260-350VDC, suggested 325VDC±25VDC
-
Pulse Output: 275 times/second±25 times/second
产品介绍：
Honeywell LG1093AA24 261A1812P012 是一款高性能的紫外线火焰传感器，专为检测烃类火焰发出的紫外线辐射而设计。它采用先进的紫外线敏感技术，能够快速响应火焰的存在，并将其转化为电信号，从而实现火焰的检测和控制。该传感器具有高灵敏度、宽光谱响应范围以及快速响应时间，能够在各种工业环境中提供可靠的火焰检测。
Product Introduction:
The Honeywell LG1093AA24 261A1812P012 is a high-performance ultraviolet flame sensor designed to detect ultraviolet radiation emitted by hydrocarbon flames. It uses advanced UV-sensitive technology to quickly respond to the presence of flames and convert them into electrical signals for flame detection and control. The sensor features high sensitivity, wide spectral response, and fast response time, providing reliable flame detection in various industrial environments.
产品应用行业：
The Honeywell LG1093AA24 261A1812P012 is a high-performance ultraviolet flame sensor designed to detect ultraviolet radiation emitted by hydrocarbon flames. It uses advanced UV-sensitive technology to quickly respond to the presence of flames and convert them into electrical signals for flame detection and control. The sensor features high sensitivity, wide spectral response, and fast response time, providing reliable flame detection in various industrial environments.
产品应用行业：
-
工业炉窑：监测火焰状态，确保燃烧稳定。
-
锅炉：检测火焰，提高燃烧效率。
-
燃气设备：检测火焰，确保安全运行。
-
航空航天：用于检测发动机火焰等。
Product Application Industries:
-
Industrial Furnaces: Monitoring flame status to ensure stable combustion.
-
Boilers: Detecting flames to improve combustion efficiency.
-
Gas Appliances: Detecting flames to ensure safe operation.
-
Aerospace: Used for detecting engine flames.
