描述

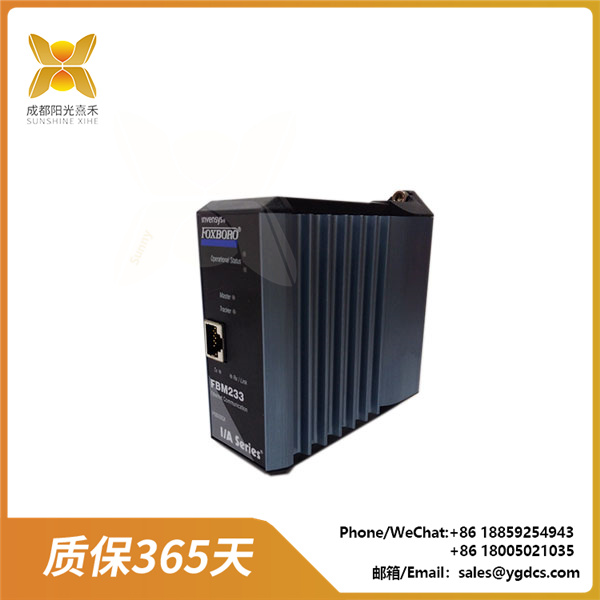

产品细节说明:FBM233 冗余现场设备系统集成模块

FOXBORO FBM233 是一款高性能的冗余现场设备系统集成模块，专为工业自动化控制系统设计。以下是关于该模块的详细信息：

1. 产品概述
品牌与型号：FOXBORO FBM233
系列：FBM（Fieldbus Module）系列
功能：FBM233 是狐搏罗（Foxboro）I/A 系列分布式控制系统（DCS）的重要组成部分，用于连接现场设备与控制系统，实现数据采集、传输和控制功能。

2. 技术规格
通信接口：
提供单端口或双端口以太网连接，支持冗余设计。
以太网传输速率：10 Mbps 或 100 Mbps。
使用铜质 RJ-45 接头连接双端口以太网设备。
支持多种通信协议，包括 Modbus、HART、Profibus DP、Foundation Fieldbus 等。
数据处理能力：
每个模块最多可连接 64 个现场设备。
支持高达 2000 个 DCI（分布式控制接口）块连接。
数据类型支持：模拟输入/输出值（整数或 IEEE 单精度浮点数）、数字输入/输出值、多包数字输入值（每个连接点最多 32 个数字点）。
冗余设计：
模块组合使用时，一个为主模块，一个为跟踪模块，提供现场总线模块（FBM）级别的冗余。
主模块负责数据更新，跟踪模块在主模块故障时接管任务。
物理特性：
尺寸：120 mm x 90 mm x 25 mm。
材质：铝合金外壳，提供良好的物理和电气保护。
重量：约 0.45 千克。
工作温度范围：-40°C 至 +85°C。
防护等级：IP66 或 NEMA 4X。
安装方式：
支持 DIN 导轨安装或机架安装。
可通过模块底板安装多个模块，每个底板最多可容纳四个模块。

3. 应用场景
工业自动化：广泛应用于过程控制、批处理、楼宇自动化等领域。
恶劣环境：适用于类 G3 等恶劣环境，符合 ISA S71.04 标准。
数据采集与控制：用于监控传感器、变送器和转换器的输出电压，实现过程控制和数据采集。

4. 优势
高可靠性：冗余设计确保系统稳定性，即使单个组件发生故障，系统仍能持续运行。
灵活性：支持多种通信协议和设备类型，适应不同工业环境。
扩展性：通过添加多个模块可扩展 I/O 点数，满足复杂应用需求。
易用性：模块化设计便于安装和维护，支持多种编程语言和开发工具。

5. 总结
FOXBORO FBM233 是一款高性能、高可靠性的工业自动化模块，适用于各种复杂的工业环境。其冗余设计、灵活的通信协议支持和强大的数据处理能力使其成为工业自动化领域的理想选择。

Product details:FBM233 Redundant field device system integration module

The FOXBORO FBM233 is a high-performance redundant field equipment system integration module designed for industrial automation control systems. Here are the details about the module:

1. Product overview
Make and Model: FOXBORO FBM233
Series: FBM (Fieldbus Module) series
The FBM233 is an important part of Foxboro’s I/A series distributed control system (DCS), which is used to connect field equipment to the control system to achieve data acquisition, transmission and control functions.

2. Technical specifications
Communication interface:
Provides single – or dual-port Ethernet connectivity for redundancy.
Ethernet transfer rate: 10 Mbps or 100 Mbps.
Connect dual-port Ethernet devices using copper RJ-45 connectors.
Supports a variety of communication protocols, including Modbus, HART, Profibus DP, Foundation Fieldbus, and more.
Data processing capability:
Each module can connect up to 64 field devices.
Supports up to 2000 DCI (Distributed Control Interface) block connections.
Data types supported: analog input/output values (integer or IEEE single-precision floating point), digital input/output values, multi-packet digital input values (up to 32 digital points per connection point).
Redundant design:
When used in combination, one main module and one tracking module provide fieldbus module (FBM) level redundancy.
The master module is responsible for data updates and the tracking module takes over the task if the master module fails.
Physical characteristics:
Dimensions: 120 mm x 90 mm x 25 mm.
Material: Aluminum alloy housing provides good physical and electrical protection.
Weight: About 0.45 kg.
Operating temperature range: -40°C to +85°C.
Protection class: IP66 or NEMA 4X.
Installation method:
Supports DIN rail mounting or rack mounting.
Multiple modules can be installed through the module base plate, each base plate can accommodate up to four modules.

3. Application scenario
Industrial automation: widely used in process control, batch processing, building automation and other fields.
Harsh environment: Suitable for harsh environment such as Class G3, in line with ISA S71.04 standard.
Data acquisition and control: Used to monitor the output voltage of sensors, transmitters and converters for process control and data acquisition.

Step 4: Advantages
High reliability: The redundant design ensures system stability and continuous operation even if a single component fails.
Flexibility: Supports a variety of communication protocols and device types to adapt to different industrial environments.
Scalability: I/O points can be expanded by adding multiple modules to meet complex application requirements.
Ease of use: Modular design for easy installation and maintenance, support for multiple programming languages and development tools.

Step 5 Summarize
The FOXBORO FBM233 is a high-performance, highly reliable industrial automation module for use in complex industrial environments. Its redundant design, flexible communication protocol support and powerful data processing capabilities make it ideal for industrial automation.
