描述

FBM211-RH914TN 负责将外部世界的物理量转换为计算机或微处理器能够识别的数字信号

输入接口模块是一种电子设备组件,FBM211-RH914TN用于接收和处理来自外部设备或传感器的模拟或数字信号。这些信号可以是电压、电流、温度、压力、光强等各种物理量的测量值。输入接口模块将这些信号转换成电子设备能够理解和处理的格式,通常是数字信号。

输入接口模块广泛应用于各种工业控制系统、自动化设备、仪器仪表、数据采集系统等领域。它们负责将外部世界的物理量转换为计算机或微处理器能够识别的数字信号,从而实现对这些物理量的监测、控制和分析。

输入接口模块的类型和规格因应用而异,常见的接口模块包括模拟输入模块、数字输入模块、多功能输入模块等。模拟输入模块用于接收模拟信号,如电压、电流等,通常具有调理电路、采样电路和模数转换器等组件。数字输入模块则用于接收数字信号,如开关状态、传感器输出等,通常具有光电耦合器、微处理器等组件。多功能输入模块则结合了模拟和数字输入的功能,可以接收多种类型的信号。

在选择和使用输入接口模块时,FBM211-RH914TN需要根据实际的应用场景和需求来确定合适的模块类型和规格。同时,还需要考虑模块的性能指标,如输入范围、精度、稳定性、抗干扰能力等,以及模块的安装方式、通信协议、供电要求等因素。

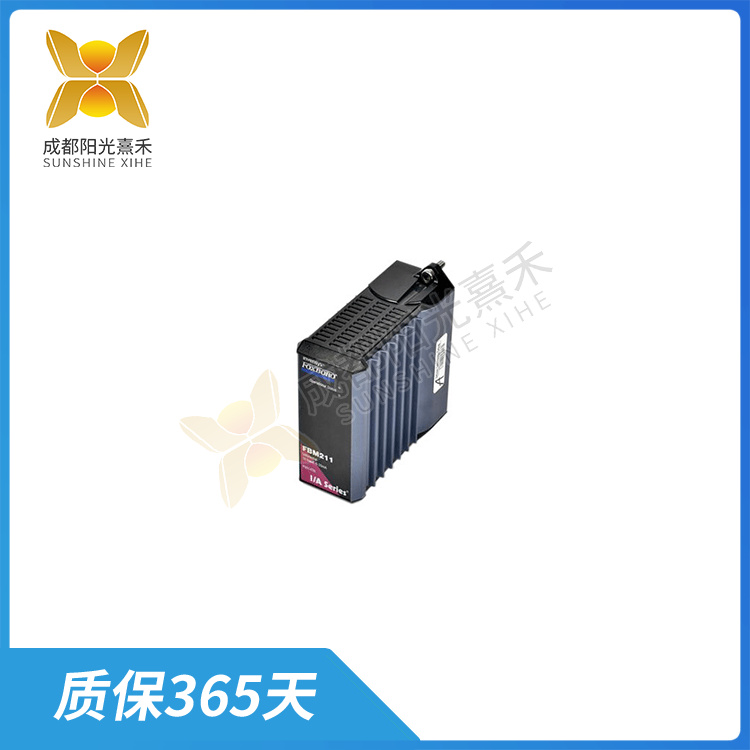

FBM211-RH914TN是由福克斯博罗(施耐德电气)生产的一款输入接口模块。以下是其主要参数:

产品编号:FBM211
产品类型:输入接口模块
输入:具有16组隔离独立通道
输入范围(每个通道):0至20.4 mA dc(每个通道电流限制为33 mA)
通信:通过冗余的2 Mbps模块现场总线与其相关的FCM或FCP通信
输入电压范围(冗余):24伏直流电+5%,-10%
功耗:在24伏直流电下为7瓦(最大值)

FBM211-RH914TN 负责将外部世界的物理量转换为计算机或微处理器能够识别的数字信号

An input interface module is an electronic device assembly, the FBM211-RH914TN is used to receive and process analog or digital signals from external devices or sensors. These signals can be measured values of various physical quantities such as voltage, current, temperature, pressure, light intensity, etc. The input interface module converts these signals into a format that the electronic device can understand and process, usually a digital signal.

The input interface module is widely used in various industrial control systems, automation equipment, instruments, data acquisition systems and other fields. They are responsible for converting the physical quantities of the external world into digital signals that can be recognized by computers or microprocessors, so as to realize the monitoring, control and analysis of these physical quantities.

The types and specifications of input interface modules vary from application to application. Common interface modules include analog input modules, digital input modules, and multi-function input modules. The analog input module is used to receive analog signals, such as voltage, current, etc., and usually has components such as conditioning circuit, sampling circuit, and analog-to-digital converter. The digital input module is used to receive digital signals, such as switch status, sensor output, etc., usually with optocouplers, microprocessors and other components. The multifunctional input module combines the functions of analog and digital input and can receive various types of signals.

When selecting and using an input interface module, the FBM211-RH914TN needs to determine the module type and specifications based on actual application scenarios and requirements. At the same time, it is also necessary to consider the performance indicators of the module, such as input range, accuracy, stability, anti-interference ability, etc., as well as the installation mode of the module, communication protocol, power supply requirements and other factors.



The FBM211-RH914TN is an input interface module manufactured by Schneider Electric (Foxboro). Here are the main parameters:

Product number: FBM211
Product type: Input interface module
Input: Has 16 groups of isolated independent channels
Input range (per channel) : 0 to 20.4 mA dc (current limited to 33 mA per channel)
Communication: Communication with its associated FCM or FCP via a redundant 2 Mbps module fieldbus
Input voltage range (redundancy) : 24V DC +5%, -10%
Power consumption: 7 watts at 24 VDC (Max.)
