描述

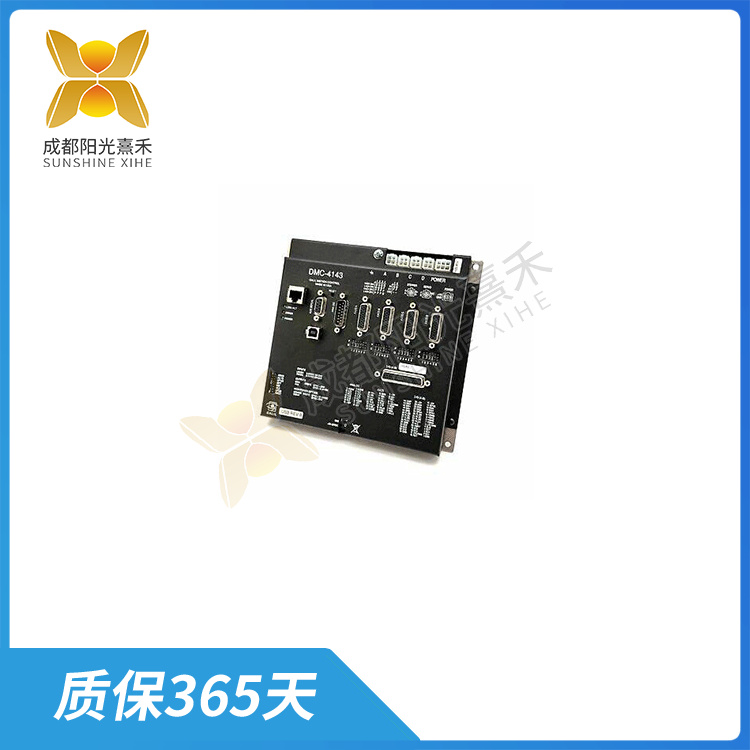

DMC-4143 四轴运动控制器通过接收上位机发送的运动指令

四轴运动控制器是一种用于控制四个轴(通常是X、Y、Z轴和一个旋转轴)运动的设备。DMC-4143广泛应用于工业自动化、机器人技术、数控机床、3D打印等领域。四轴运动控制器通过接收上位机发送的运动指令,实时计算并输出各轴的速度和位置,从而实现对运动对象的精确控制。

四轴运动控制器DMC-4143的主要功能包括:

接收上位机发送的运动指令,包括各轴的速度、加速度、位移等参数。

根据指令实时计算各轴的速度和位置,并输出相应的控制信号。

实现多轴联动控制,保证各轴之间的协调运动。

具有插补功能,可以根据起点和终点坐标计算出中间点的坐标,使运动更加平滑。

具有多种输入输出接口,可以与各种传感器、执行器等设备连接,实现闭环控制。
在选择四轴运动控制器时,需要考虑以下因素:

控制精度:根据需要控制的对象和精度要求选择合适的控制器型号。

控制速度:根据运动对象的运动速度和加速度要求选择合适的控制器型号。

输入输出接口:根据实际应用需求选择合适的输入输出接口类型和数量。

稳定性与可靠性:选择经过严格测试和验证的控制器品牌和型号,确保系统的稳定性和可靠性。

总之,四轴运动控制器DMC-4143是工业自动化和机器人技术中不可或缺的重要组件。通过选择合适的控制器型号和配置,可以实现高效、精确、稳定的运动控制,提高生产效率和产品质量。

DMC-4143 四轴运动控制器通过接收上位机发送的运动指令

A four-axis motion controller is a device used to control the motion of four axes (usually X, Y, Z, and one rotation axis). DMC-4143 is widely used in industrial automation, robotics, CNC machine tools, 3D printing and other fields. By receiving the motion instruction sent by the host computer, the four-axis motion controller calculates and outputs the speed and position of each axis in real time, so as to realize the precise control of the moving object.

The main functions of the four-axis motion controller DMC-4143 include:

Receive the motion instructions sent by the host computer, including the speed, acceleration, displacement and other parameters of each axis.

According to the instructions, the speed and position of each axis are calculated in real time, and the corresponding control signal is output.

Multi-axis linkage control is realized to ensure the coordinated movement between the axes.

With interpolation function, the coordinates of the middle point can be calculated according to the coordinates of the starting point and the end point, so that the movement is smoother.

With a variety of input and output interfaces, it can be connected with various sensors, actuators and other devices to achieve closed-loop control.
When choosing a four-axis motion controller, the following factors need to be considered:

Control accuracy: Select the appropriate controller model according to the object and accuracy requirements to be controlled.

Control speed: Select the appropriate controller model according to the motion speed and acceleration requirements of the moving object.

Input/Output interface: Select an appropriate input/output interface type and quantity based on the actual application requirements.

Stability and reliability: Select a rigorously tested and verified controller brand and model to ensure system stability and reliability.

In short, the four-axis motion controller DMC-4143 is an indispensable component in industrial automation and robotics. By selecting the appropriate controller model and configuration, you can achieve efficient, accurate and stable motion control, improve production efficiency and product quality.
