描述

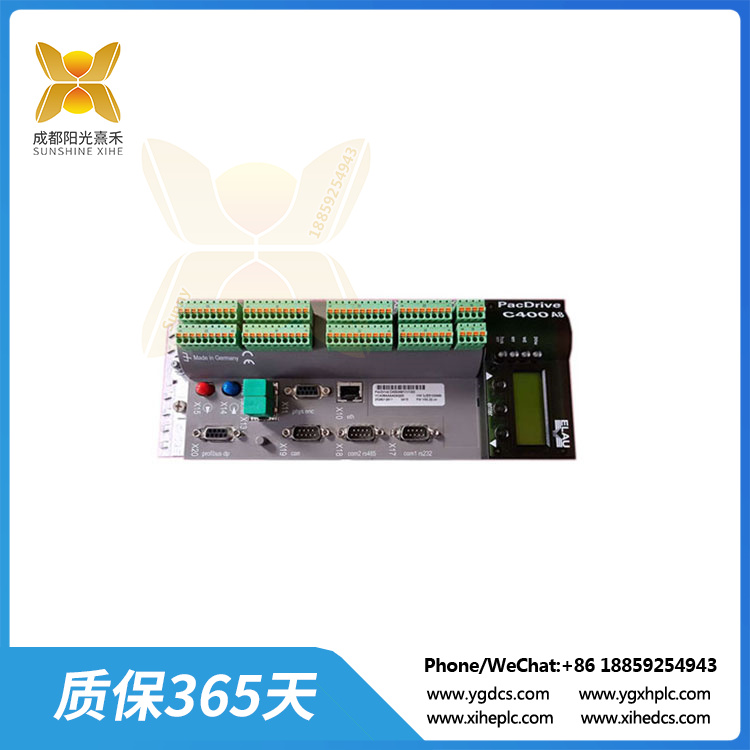

C400A811100 伺服驱动器
C400A811100是一款伺服驱动器,负责将控制器发出的命令转化为电能,通过电机驱动机构实现高精度、高效率运动控制。该设备通常包括功率放大器、电源模块、比例积分控制等模块,可根据不同应用需求和型号进行配置。
C400A811100在控制信号的作用下驱动执行电机,其内部结构包括电源电路、继电器板电路、主控制板电路、驱动板电路和电源转换电路等部分。电源电路的功能是将外部输入的直流电转换为不同大小的直流电输出,并为后续的继电器板、驱动板和电源转换电路提供直流电。继电器板则提供直流电,以完成控制信号和检测信号的传输。主控制板的核心功能在于接收控制信号,通过继电器板传输驱动器的控制信号和检测信号,以实现双闭环控制,包括速度调节和电流调节,进而实现电动机的速度控制和换向控制。驱动板则从主控板接收信号,驱动电源转换电路,实现电机的正常运行。
伺服驱动器与伺服放大器虽然都能进行电机控制,但在内部结构和应用场合上有所不同。伺服驱动器更适用于对扭矩、加速度等参数具有苛刻要求的高性能伺服系统,并且可以通过编程实现多种运动方式。
在选型时,首先要进行需求分析,确定转速、转矩、转速精度或定位精度、安装尺寸、是否需要闭环、成本等参数。然后选择适合的电机类型和反馈元件,最后根据电机功率、以上综合因素以及控制方式选择驱动器。
请注意,C400A811100的正确选型和使用对于设备的整体性能至关重要。如果在使用过程中遇到故障,如电机偏差计数器溢出错误,需要根据具体情况进行调整,如重新调整增益、延长加减速时间、更换更大容量的电机或减轻负载等。
综上所述,C400A811100在工业自动化领域中扮演着重要的角色,是实现高精度、高效率运动控制的关键部件。如需更多关于伺服驱动器的信息,建议查阅相关技术手册或咨询专业技术人员。
C400A811100 伺服驱动器
C400A811100 is a servo drive, responsible for converting the command issued by the controller into electrical energy, through the motor drive mechanism to achieve high precision and high efficiency motion control. The device usually includes power amplifier, power module, proportional integral control and other modules, which can be configured according to different application requirements and models.
C400A811100 drives the executive motor under the action of the control signal, and its internal structure includes a power supply circuit, a relay board circuit, a main control board circuit, a driver board circuit and a power conversion circuit. The function of the power supply circuit is to convert the external input direct current into different sizes of direct current output, and provide direct current for the subsequent relay board, driver board and power conversion circuit. The relay board provides direct current to complete the transmission of control signals and detection signals. The core function of the main control board is to receive the control signal and transmit the control signal and detection signal of the driver through the relay board to achieve double closed-loop control, including speed regulation and current regulation, and then realize the speed control and commutation control of the motor. The driving board receives signals from the main control board, drives the power conversion circuit, and realizes the normal operation of the motor.
Although both servo drivers and servo amplifiers can control the motor, they are different in internal structure and application. Servo drivers are more suitable for high performance servo systems with demanding parameters such as torque and acceleration, and can be programmed to achieve a variety of motion modes.
In the selection, we must first conduct a demand analysis to determine the speed, torque, speed accuracy or positioning accuracy, installation size, whether to close the loop, cost and other parameters. Then select the appropriate motor type and feedback components, and finally select the driver according to the motor power, the above comprehensive factors and the control mode.
Please note that the correct selection and use of the C400A811100 is critical to the overall performance of the device. If a fault is encountered during use, such as the motor deviation counter overflow error, it needs to be adjusted according to the specific situation, such as re-adjusting the gain, extending the acceleration and deceleration time, replacing the motor with a larger capacity or reducing the load.
In summary, C400A811100 plays an important role in the field of industrial automation and is a key component to achieve high-precision and high-efficiency motion control. For more information about servo drives, it is recommended to consult the relevant technical manual or consult a professional technician.
