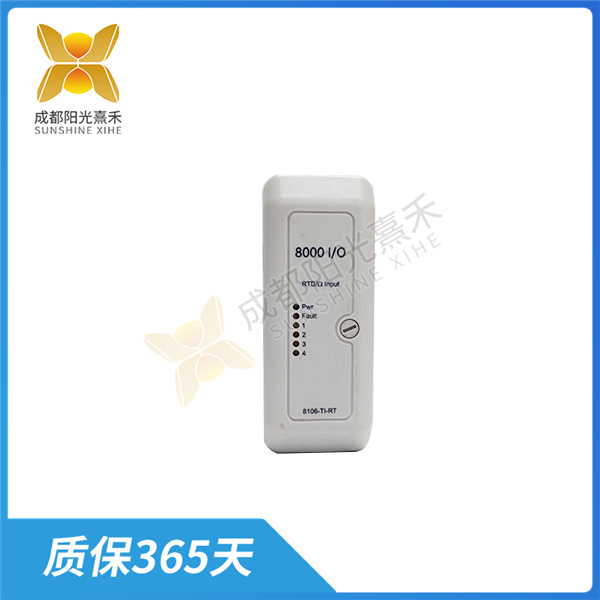

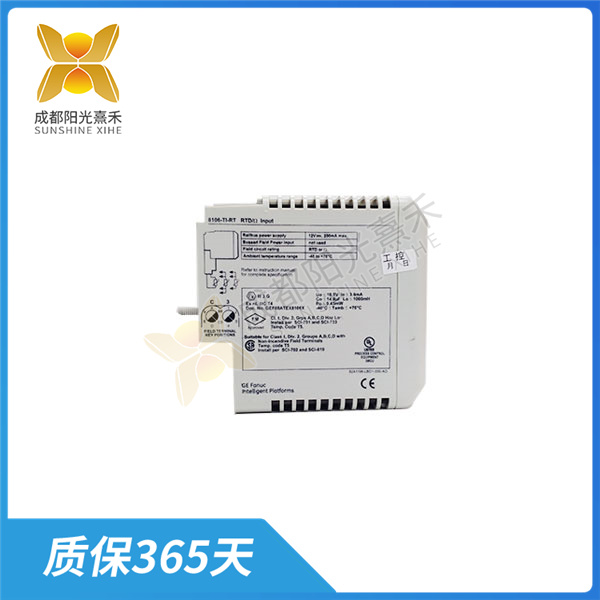

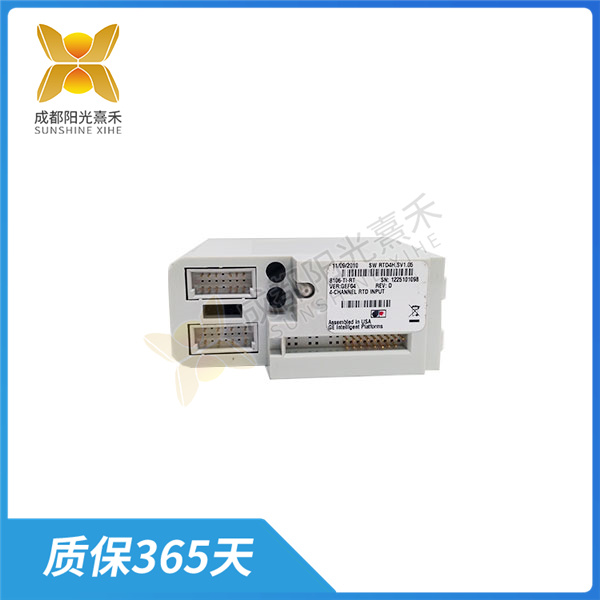

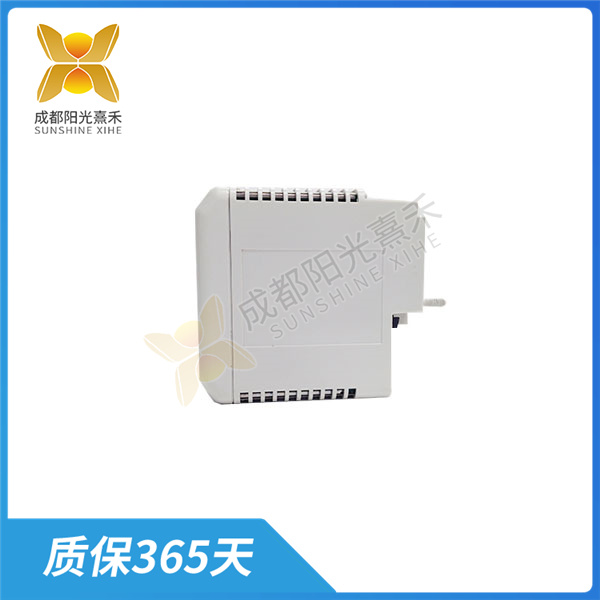

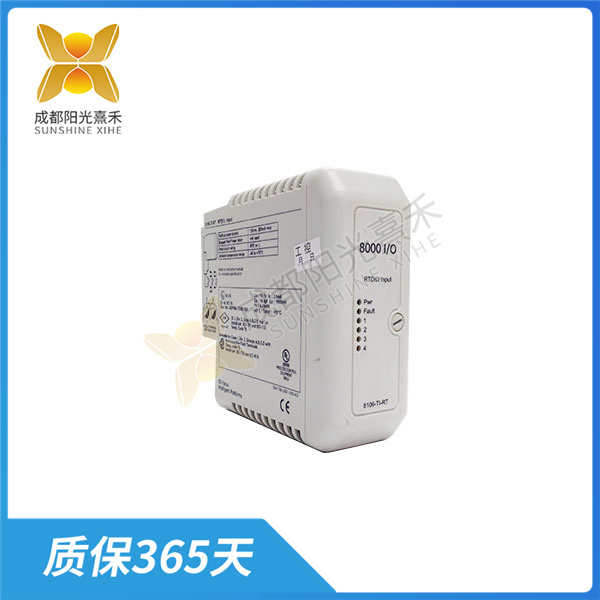

8106-TI-RT 可以同时接收4路电阻温度检测器(RTD)的信号

4通道RTD输入模块,可将各种四线式RTD进行放大、滤波、隔离和保护,提供0至+5V的线性化、高精度输出。精确和稳定性能较好,四线配置通过精密、受保护的电流源提供RTD激励电流,两条RTD线承载激励电流,两条线作为信号输入引脚用来测量RTD电压。由于没有激励电流流经信号输入引脚,引脚的长度或电阻仅造成很小的RTD测量误差,甚至无误差。低温漂、斩波稳定差分放大器允许使用非常低的激励电流,从而较大程度地减少RTD自热效应导致的误差。

  • 购买咨询热线/Phone:18859254943
  • 邮箱/Email:sales@ygdcs.com
  • 地址:成都高新区天益街北巷52号附14号2层

描述

8106-TI-RT 可以同时接收4路电阻温度检测器(RTD)的信号

4通道RTD输入模块,可将各种四线式RTD进行放大、滤波、隔离和保护,提供0至+5V的线性化、高精度输出。精确和稳定性能较好,四线配置通过精密、受保护的电流源提供RTD激励电流,两条RTD线承载激励电流,两条线作为信号输入引脚用来测量RTD电压。由于没有激励电流流经信号输入引脚,引脚的长度或电阻仅造成很小的RTD测量误差,甚至无误差。低温漂、斩波稳定差分放大器允许使用非常低的激励电流,从而较大程度地减少RTD自热效应导致的误差。

4通道RTD输入模块是一种用于测量温度的模块,8106-TI-RT 可以同时接收4路电阻温度检测器(RTD)的信号,并将其转换为电信号,供控制系统使用。

8106-TI-RT 模块通常具有以下特点:

多通道:4通道RTD输入模块可以同时接收4路RTD信号,提高了测温的效率和精度。
信号转换:模块可以将RTD的电阻值转换为电信号,并通过数据线传输给控制系统。
线性化校正:为了提高测温精度,模块通常具有线性化校正功能,可以自动对RTD信号进行校准。
温度范围:根据不同的应用场景,模块可以测量不同的温度范围,如-200℃~850℃等。
多种接口:模块通常支持多种接口,如4-20mA、0-5V等,方便与各种控制系统连接。
抗干扰能力强:模块采用低噪声设计,具有较强的抗干扰能力,可以在复杂的环境中稳定工作。
易于安装和调试:模块结构紧凑,易于安装和调试,可以方便地与各种设备集成。
总之,4通道RTD输入模块是一种高精度、多通道的温度测量模块,广泛应用于各种需要高精度测温的场合,如石油、化工、电力、制药等领域。

8106-TI-RT 可以同时接收4路电阻温度检测器(RTD)的信号

The 4-channel RTD input module amplifies, filters, isolates and protects a wide range of 4-wire RTDS, providing linearized, high-precision outputs from 0 to +5V. Accurate and stable, four-wire configuration provides RTD excitation current through a precise, protected current source, two RTD lines carry the excitation current, and two lines are used as signal input pins to measure RTD voltage. Since no excitation current flows through the signal input pin, the length or resistance of the pin causes little or no error in the RTD measurement. Low-temperature bleach, chop-stabilized differential amplifiers allow the use of very low excitation currents, thus greatly reducing the error caused by the self-heating effect of RTD.

The 4-channel RTD input module is a module for measuring temperature, and the 8106-TI-RT can simultaneously receive the signal of the 4-channel resistance temperature detector (RTD) and convert it into an electrical signal for use by the control system.

The 8106-TI-RT module usually has the following characteristics:

Multi-channel: The 4-channel RTD input module can receive 4 RTD signals at the same time, which improves the efficiency and accuracy of temperature measurement.
Signal conversion: The module can convert the resistance value of the RTD into an electrical signal and transmit it to the control system through the data line.
Linearization correction: In order to improve temperature measurement accuracy, the module usually has a linearization correction function, which can automatically calibrate the RTD signal.
Temperature range: According to different application scenarios, the module can measure different temperature ranges, such as -200 ° C to 850 ° C.
Multiple interfaces: Modules usually support a variety of interfaces, such as 4-20mA, 0-5V, etc., to facilitate connection with various control systems.
Strong anti-interference ability: The module adopts low noise design, has strong anti-interference ability, and can work stably in a complex environment.
Easy to install and debug: The module is compact, easy to install and debug, and can be easily integrated with various devices.
In short, the 4-channel RTD input module is a high-precision, multi-channel temperature measurement module, which is widely used in various occasions requiring high-precision temperature measurement, such as petroleum, chemical, electric power, pharmaceutical and other fields.
