5069-RTB64-SCREW 电源端子 RTB

Description

5069-RTB64-SCREW 电源端子 RTB

5069-RTB64-SCREW是由Allen Bradley制造的电源端子，可拆卸端子块(RTB)套件。该单元属于5069紧凑型输入/输出系列，以高速数据传输和过程控制而闻名。5069-RTB64-SCREW可支持多达31个属于该系列的输入/输出模块。它重0.39磅(175克)，尺寸为138 x 22 x 105毫米。5069-RTB64-SCREW与输入/输出模块一起操作，以便连接现场侧接线。它有4和6个引脚，使其能够执行此功能。从技术上讲，5069-RTB64-SCREW具有4个form C单极双掷(SPDT)输出，这意味着它具有单个输入，但可以连接到两个输出并在两个输出之间切换。SPDT因此给予5069-RTB64-SCREW一个动态控制状态。5069-RTB64-SCREW没有外壳，所以它是开放的。它还具有5至264伏(交流)或5至125伏(直流)的输出电压范围。

5069-RTB64-SCREW的功耗为2.6瓦，支持模式匹配系统;它还支持通用工业协议同步。这种CIP同步对于增加控制协调至关重要。在像5069-RTB64-SCREW功能的紧凑型输入/输出模块这样的系统中，绝对时间同步是至关重要的，因此，CIP Sync的存在使其在实现实时同步方面具有急需的优势。在安装过程中，5069-RTB64-SCREW必须插入正确的模块;否则，可能会在供电时损坏模块电路。

5069-RTB64-SCREW

5069-RTB64-SCREW 电源端子 RTB

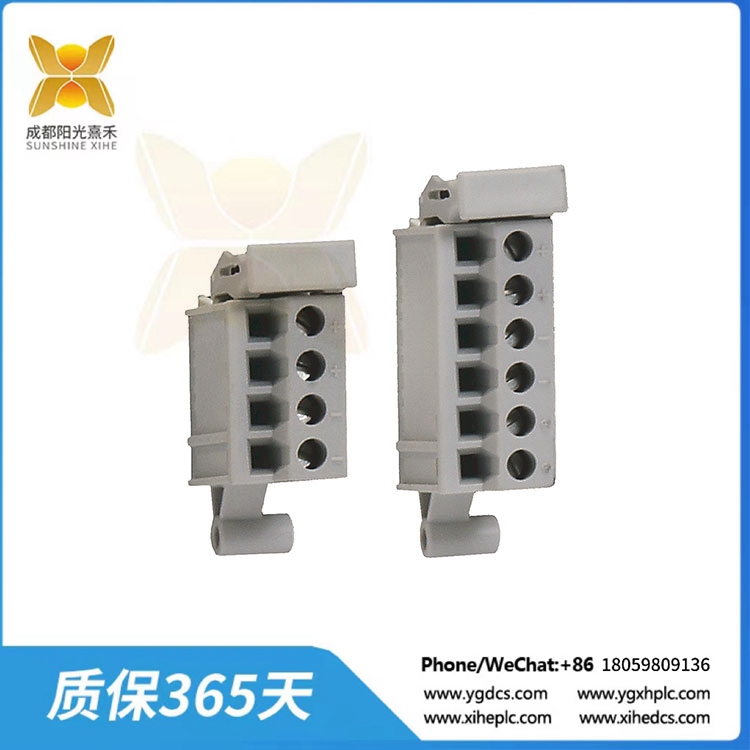

The 5069-RTB64-SCREW is a Power Terminal, Removable Terminal Block (RTB) kit manufactured by Allen Bradley. This unit belongs to the 5069 compact Input/Output series, which is known for high-speed data transfer and process control. The 5069-RTB64-SCREW can provide support for up to 31 Input/Output modules that belong to the series. It weighs 0.39 pounds (175 grams) and has dimensions of 138 x 22 x 105 millimeters. The 5069-RTB64-SCREW operates with Input/Output modules in order to connect field side-wiring. It has 4 and 6 pins, which enable it to carry out this function. Technically speaking, the 5069-RTB64-SCREW has 4 form C Single Pole-Double Throw (SPDT) output, meaning that it has a single input, but can connect to and switch between two outputs. The SPDT thus gives the 5069-RTB64-SCREW a dynamic state of control. The 5069-RTB64-SCREW has no enclosure, so it functions openly. It also has an output voltage range of either 5 to 264 Volts (AC) or 5 to 125 Volts (DC).

The 5069-RTB64-SCREW has a power dissipation of 2.6 Watts and supports a pattern matching system; it also supports a Common Industry Protocol Sync. This CIP Sync is essential for increased control coordination. In systems like the compact input/output modules where the 5069-RTB64-SCREW functions, absolute time synchronization is vital and as such, the presence of the CIP Sync gives it a much-needed edge in achieving real-time synchronization. During the installation process, note that the 5069-RTB64-SCREW must be inserted into its correct module; otherwise, damage to the module circuitry may occur while power is supplied.
