1783-US6T2TGH2H 端口未管理交换机

Description

1783-US6T2TGH2H 端口未管理交换机

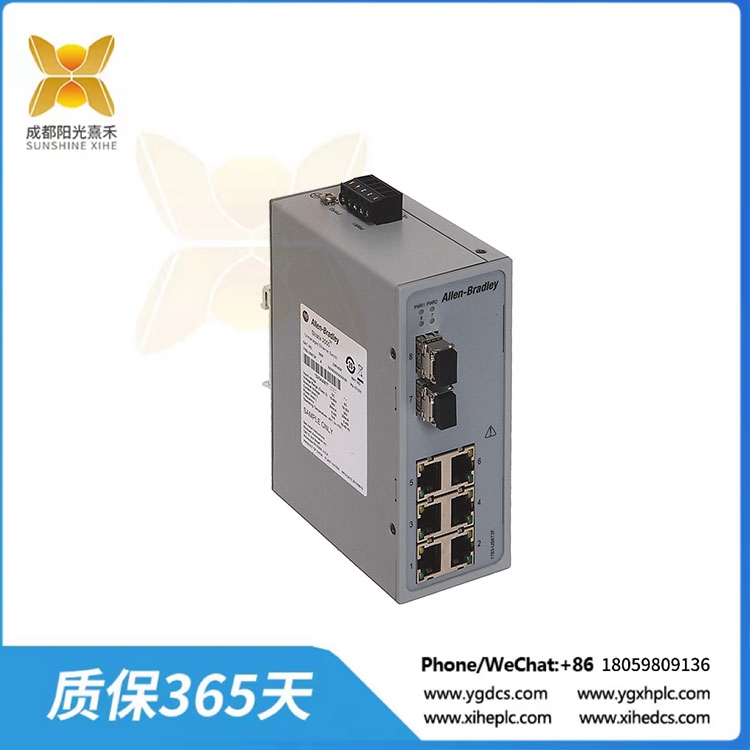

Allen-Bradley 1783-US6T2TG2H是Stratix 2000以太网非管理型交换机。它共有10个可用端口，6个快速以太网+ 2个千兆以太网RJ45端口和2个快速以太网单模预安装光纤SFP模块SFP端口。请注意，如果您想与交换机一起使用，则需要单独购买SFP模块。它的广播风暴阈值，特别是在每秒数据包方面，是128 pps (10/100/1000 Mbps)。该交换机带有绿色/黄色状态指示灯，可以查看其电源状态、端口速度状态和网络状态。注意:1783-US6T2TG2H交换机为开式机箱。接地时，应选用2.5 mm2 (14awg)的铜线，该铜线适用于机箱外温度高于环境温度187 ËšF，并配合适的环接端子。直流供电时，线缆尺寸为4-0.25 mm2 (12- 24awg)双绞线铜线，适用于机箱外环境温度187 ËšF以上。

本系列B电源输入为24V (DC 12 ~ 48v, AC 18 ~ 30v, Hz 50 ~ 60hz)，最大功耗7.5 W，最大浪涌电流1.83 a。1783-US6T2TG2H的额定直流电流为450 mA，交流电流为900 mA，而其最大直流电流为850 mA，交流电流为1700 mA。

其工作温度为-40-167 ËšF，其最高环境温度为167 ËšF，其周围最高空气温度为167 ËšF，其储存温度为-40-185 ËšF。该开关的非冷凝相对湿度为5-95%。1783-US6T2TG2H在10- 500hz时的工作振动为2g，工作冲击为15g，非工作冲击为30g。

1783-US6T2TGH2H

1783-US6T2TGH2H 端口未管理交换机

The Allen-Bradley 1783-US6T2TG2H is a Stratix 2000 Ethernet unmanaged switch. It has a total of 10 ports available, with 6 fast Ethernet + 2 Gigabit Ethernet RJ45 ports and 2 fast Ethernet single-mode preinstalled fiber SFP modules SFP ports. Note that you need to buy the SFP modules separately if you want to use them with your switch. Its broadcast storm threshold, particularly in terms of packets per second, is 128 pps for 10/100/1000 Mbps. This switch comes with green/yellow status indicators that allow you to see its power supply status, port speed status, and network status. Note that the 1783-US6T2TG2H switch has an open-type enclosure. When using a ground connection, the wire should be 2.5 mm2 (14 AWG) copper wire that is suitable for 187 ËšF above the surrounding temperature outside the enclosure when used with a suitable ring terminal. For a DC power connection, the required wire size is 4-0.25 mm2 (12-24 AWG) twisted-pair copper wire that is also suitable for 187 ËšF above surrounding ambient temperature outside the enclosure.

This Series B switch has a power input of 24V (12-48V DC, 18-30V AC, 50-60 Hz), a maximum power consumption of 7.5 W, and a maximum inrush current of 1.83 A. The 1783-US6T2TG2H’s nominal currents are 450 mA for DC and 900 mA for AC, while its maximum currents are 850 mA for DC and 1700 mA for AC.

Its operating temperature is from -40-167 ËšF, its maximum ambient temperature is 167 ËšF, its maximum surrounding air temperature is 167 ËšF, and its storage temperature is -40-185 ËšF. This switch has a non-condensing relative humidity of 5-95%. the 1783-US6T2TG2H also has an operating vibration of 2 g at 10-500 Hz, an operating shock of 15 g, and a non-operating shock of 30 g.
