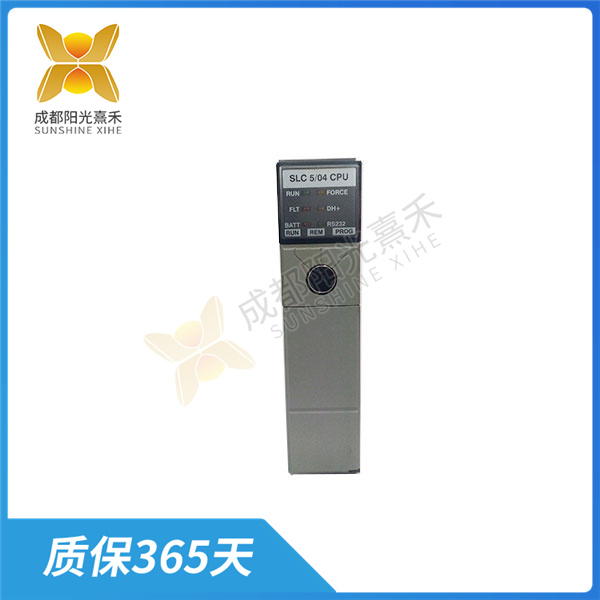

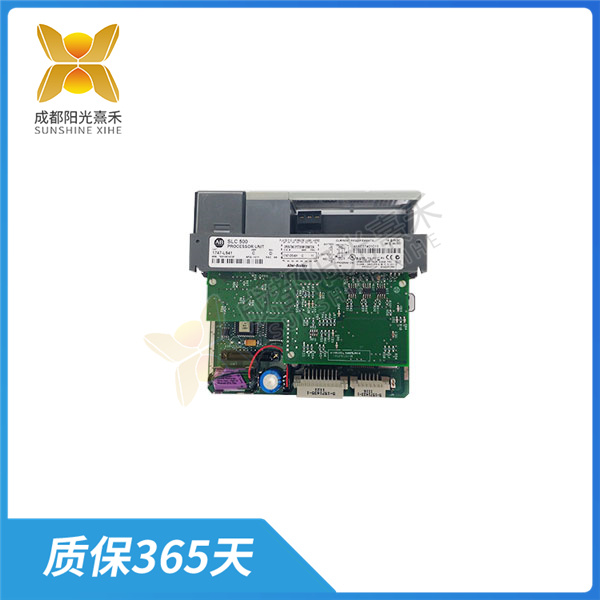

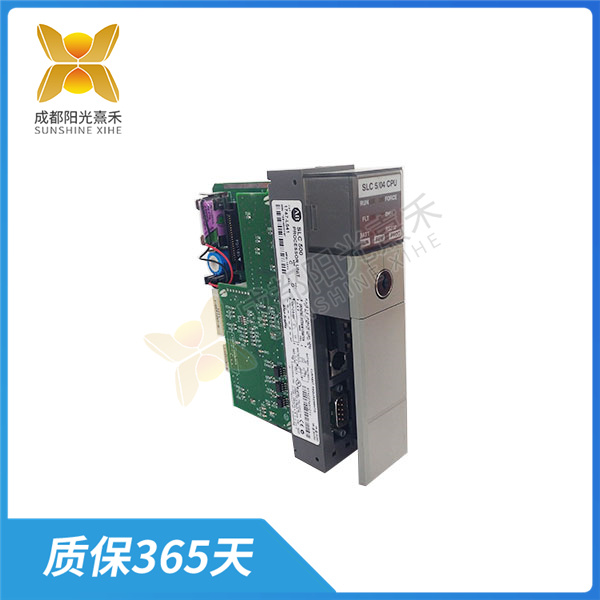

1747-L541 支持扩展的消息传递功能和高速通信

SLC 5/04处理器是SLC 500系列的一部分,该系列还包括1747-L541、L542和L543控制器。1747-L541 是一款高性能处理器,具有更快的通信速度和更短的程序执行时间。SLC 5/04配有16K、32K或64K字的内存,最多可控制4096个输入和输出点。

对于通信,SLC 5/04具有内置的DH+通道,支持扩展的消息传递功能和高速通信;它还有一个RS-232通道,用于支持DF1无线电调制解调器、DH-485、ASCII和Modbus RTU通信。对于编程,它包括高级数学指令和各种附加指令。

  • 购买咨询热线/Phone:18859254943
  • 邮箱/Email:sales@ygdcs.com
  • 地址:成都高新区天益街北巷52号附14号2层

描述

1747-L541 支持扩展的消息传递功能和高速通信

SLC 5/04处理器是SLC 500系列的一部分,该系列还包括1747-L541、L542和L543控制器。1747-L541 是一款高性能处理器,具有更快的通信速度和更短的程序执行时间。SLC 5/04配有16K、32K或64K字的内存,最多可控制4096个输入和输出点。

对于通信,SLC 5/04具有内置的DH+通道,支持扩展的消息传递功能和高速通信;它还有一个RS-232通道,用于支持DF1无线电调制解调器、DH-485、ASCII和Modbus RTU通信。对于编程,它包括高级数学指令和各种附加指令。

此外,1747-L541 还有专门为塑料加工行业设备设计的SLC 5/04处理器,内置用于塑料加工设备的ERC2算法。SLC 5/05处理器提供的功能与SLC 5/04相同,并且用内置的标准以太网借口代替了DH+端口。

SLC 5/04处理器是SLC-500模块化系统中的一种处理器,具有以下特点:

通信能力:SLC 5/04处理器提供了一个内装的DH+通信口,1747-L541 可以实现与其它的SLC 5/04和PLC处理器、操作员界面和编程终端的通信。DH+网络的通信速度比DH-485网络快3倍。
I/O数量:SLC 5/04处理器可以组成模块化控制器,其I/O数高达4096个输入和4096个输出。
存储器容量:SLC 5/04处理器的存储器容量为16K、32K和64K字之一。
执行时间:SLC 5/04处理器提供位指令的执行时间为0.37ms。
综上所述,SLC 5/04处理器在通信能力、I/O数量、存储器容量和执行时间等方面具有显著优势,适用于需要高速、高精度控制的应用场景。

1747-L541 支持扩展的消息传递功能和高速通信

The SLC 5/04 processor is part of the SLC 500 family, which also includes the 1747-L541, L542, and L543 controllers. The 1747-L541 is a high-performance processor with faster communication speeds and shorter program execution times. The SLC 5/04 comes with 16K, 32K or 64K words of memory and can control up to 4096 input and output points.

For communication, SLC 5/04 has a built-in DH+ channel that supports extended messaging capabilities and high-speed communication; It also has an RS-232 channel to support DF1 radio modem, DH-485, ASCII, and Modbus RTU communications. For programming, it includes advanced mathematical instructions and various additional instructions.

In addition, the 1747-L541 has an SLC 5/04 processor specifically designed for equipment in the plastics processing industry, with built-in ERC2 algorithms for plastics processing equipment. The SLC 5/05 processor provides the same functionality as the SLC 5/04 and replaces the DH+ port with a built-in standard Ethernet excuse.

The SLC 5/04 processor is a processor in the SLC-500 modular system with the following features:

Communication capability: The SLC 5/04 processor provides a built-in DH+ communication port, and the 1747-L541 can communicate with other SLC 5/04 and PLC processors, operator interfaces, and programming terminals. The communication speed of DH+ network is three times faster than that of DH-485 network.
I/O count: The SLC 5/04 processor can form a modular controller with an I/O count of up to 4096 inputs and 4096 outputs.
Memory capacity: The SLC 5/04 processor’s memory capacity is one of 16K, 32K and 64K words.
Execution time: SLC 5/04 processor provides a bit instruction execution time of 0.37ms.
In summary, the SLC 5/04 processor has significant advantages in terms of communication capability, amount of I/O, memory capacity and execution time, and is suitable for application scenarios requiring high-speed and high-precision control.
