描述
1746-OW16 用于将数字信号转换为可以被其他设备或系统识别的离散输出信号

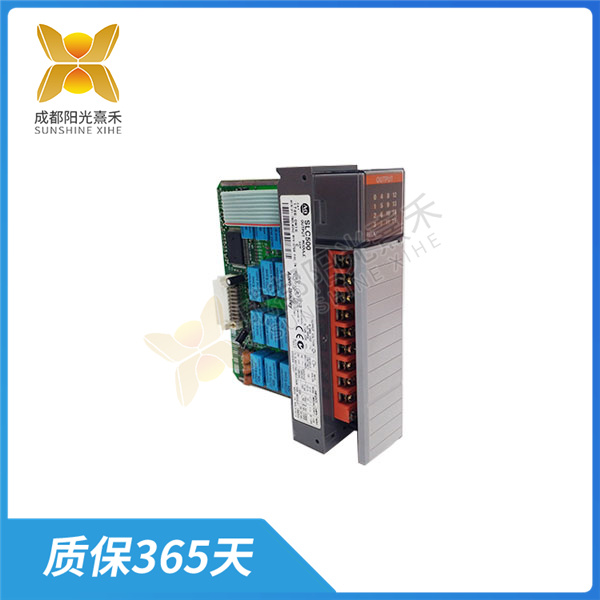

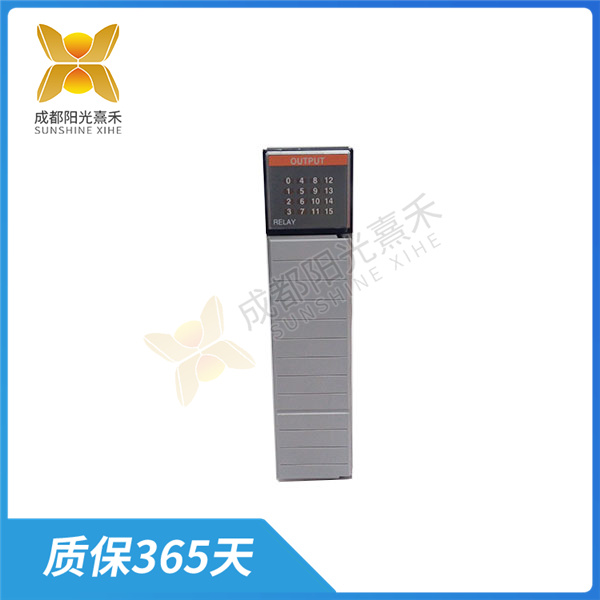

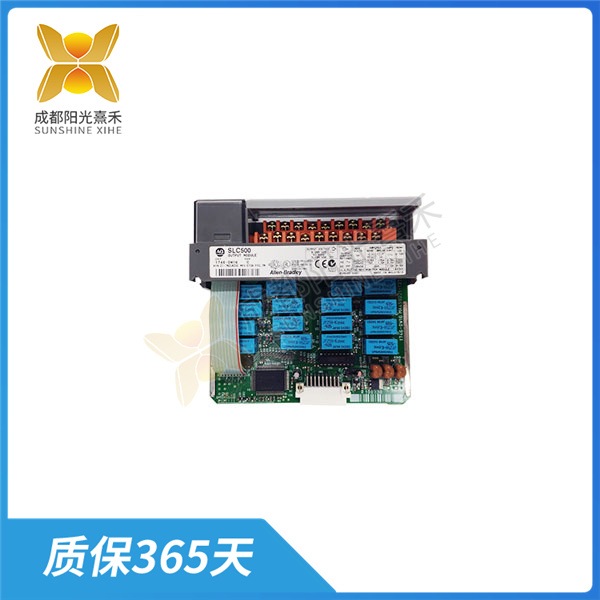

艾伦-布拉德利(Allen Bradley)有多种离散输出模块,其中1746-OW16 是艾伦-布拉德利离散输出模块,用于SLC 500产品系列,是继电器输出模块,有时也称为干触点输出模块。该模块非常适用于混合电压类别的应用,它有两组输入,每组有一个公共端子,这些分组允许一组用DC电压工作,而另一组用交流电压工作。它也可以用于两个DC电压或两个交流电压输入。该模块的使用消除了实现插入电路的需要。
在120VAC下运行时,其额定断开电流为15 A,额定断开电流为1.5 A。对于240VAC,其额定接通电流为7.5 A,额定断开电流为0.75 A。交流运行的持续电流为2.5 A。在125 VDC下运行时,其额定接通触点为0.22 A,额定断开触点为1.2 A。在125 VDC下,持续电流为1.0 A,在24VDC下运行时为2.0 A。
艾伦-布拉德利离散输出模块是艾伦-布拉德利公司生产的一种离散输出模块,用于将数字信号转换为可以被其他设备或系统识别的离散输出信号。该模块采用继电器输出方式,可以驱动大电流负载,并且具有高可靠性和稳定性。它可以应用于各种需要离散输出的场合,如自动化控制系统、报警器、照明控制等。
艾伦-布拉德利离散输出模块的主要特点包括:
继电器输出方式:该模块采用继电器输出方式,1746-OW16 可以驱动大电流负载,并且具有高耐压和耐电流能力,能够保证设备的可靠运行。
高可靠性:该模块采用高品质的电子元件和电路设计,具有较高的可靠性和稳定性,能够保证在各种恶劣环境下都能够正常工作。
多种规格可选:该模块可以根据不同的应用需求提供多种规格的型号,支持不同的输入电压和电流范围,并且可以定制特殊规格以满足特定需求。
易于集成:该模块通常具有标准的接口和引脚定义,可以方便地与其他设备或系统进行集成。
总之,艾伦-布拉德利离散输出模块是一种功能强大、应用广泛的电子设备,它可以实现数字信号到离散输出信号的快速、准确地转换,从而为各种控制系统和设备提供可靠的离散输出控制和指示功能。
1746-OW16 用于将数字信号转换为可以被其他设备或系统识别的离散输出信号
Allen Bradley has a variety of discrete output modules, of which the 1746-OW16 is an Allen-Bradley discrete output module for the SLC 500 product family, a relay output module, sometimes referred to as a dry contact output module. The module is ideal for applications in the mixed voltage category, it has two sets of inputs, each with a common terminal, and these groups allow one set to operate with DC voltage and the other with AC voltage. It can also be used with two DC voltage or two AC voltage inputs. The use of this module eliminates the need to implement a plug-in circuit.
When operating at 120VAC, it has A rated break current of 15 A and a rated break current of 1.5 A. For 240VAC, the rated on current is 7.5A and the rated off current is 0.75A. The continuous current for AC operation is 2.5 A. When operating at 125 VDC, it has A rated on contact of 0.22 A and a rated off contact of 1.2 A. The continuous current is 1.0 A at 125 VDC and 2.0 A at 24VDC.
The Allen-Bradley discrete output module is a discrete output module produced by Allen-Bradley that converts digital signals into discrete output signals that can be recognized by other devices or systems. The module adopts relay output mode, can drive large current load, and has high reliability and stability. It can be applied to a variety of occasions requiring discrete output, such as automatic control systems, alarms, lighting control, etc.
Key features of the Allen-Bradley discrete output module include:
Relay output mode: The module adopts relay output mode, 1746-OW16 can drive large current load, and has high voltage and current resistance, to ensure the reliable operation of the equipment.
High reliability: The module uses high-quality electronic components and circuit design, with high reliability and stability, to ensure that it can work normally in a variety of harsh environments.
Multiple specifications available: The module can be available in a variety of specifications according to different application requirements, support different input voltage and current ranges, and can be customized to meet specific requirements.
Easy integration: The module usually has a standard interface and pin definition that makes it easy to integrate with other devices or systems.
In short, the Allen-Bradley discrete output module is a powerful and widely used electronic device, which can realize the fast and accurate conversion of digital signals to discrete output signals, so as to provide reliable discrete output control and indication functions for various control systems and devices.
